Help cutting unique slot

[carterszydel5228]

I am designing this bolt action pen, and when I make this pen I will cut out the slot for the bolt on a mill with a rotary table, so the slot wont cut straight down, it will cut down with the profile of the 'body end' piece.

[TheCADWhisperer · Accepted solution]

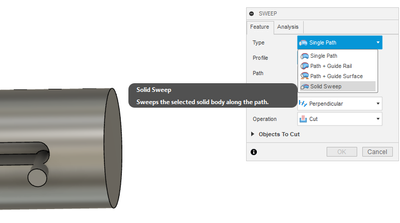

Solid Sweep (with Cut)

@carterszydel5228

Also, not sure if you intend further operations here - but just to be sure - this thread will not work as is.

[carterszydel5228]

I am having trouble with the solid sweep feature because I have never used it before, and for the threads I do not know how to align them.

[TheCADWhisperer]

@carterszydel5228

Alignment is not really the issue (that can be solved with a couple of Joints). The real issue is that the thread is offset from the end of the cylinder. There is no way for the threads to engage.

[carterszydel5228]

I now understand what you are saying about the threads, when I try to change the female threads on the 'body' to full length it gives me an error.

[jhackney1972 · Accepted solution]

You have been given the best method of cutting the pen slot but you probably are wondering how to get the Solid Sweep path.  In my attached video I outline one method.  I hope it helps.  The model I used in not yours just one I created to demonstrate.  It is attached.

[carterszydel5228]

thank you this will help a lot
