Creating Vent on a Square

oystein.l.l
Advocate
Advocate


how do i make this instead of cutting all the way through to cut at an angle making a vent? i hope im making sense..

0 Likes
Accepted solutions (1)
735 Views
19 Replies
Replies (19)
Message 2 of 20

hamid.sh.
Advisor
Advisor

Do you want to cut along an angled line? Then draw that line in a sketch and use Sweep to cut. Do you want to cut with a tapered angle? Then you have that option in the same Extrude dialogue.

Hamid
0 Likes
Message 3 of 20

oystein.l.l
Advocate
Advocate
i want a taper angle but from one side, extrude doesent do that, also sweep cut i have never used im pretty new to designing.. appreciate the help!
0 Likes
Message 4 of 20

aliobidi
Collaborator
Collaborator

Hi,

see this

0 Likes
Message 5 of 20

oystein.l.l
Advocate
Advocate
howdy
0 Likes
Message 6 of 20

oystein.l.l
Advocate
Advocate
thats not exactly what im looking to do, im going to create a vent for the square hull body on the side profiles, i can show picture example
0 Likes
Message 7 of 20

oystein.l.l
Advocate
Advocate

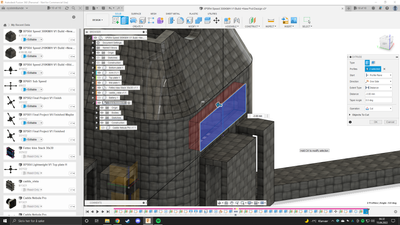

i wanted to create scoops for the square hull body on all side faces, example here like the scoops vents for airplanes, basically vent scoop for the square body on all side faces1221-P-M-K(2493).png

0 Likes
Message 8 of 20

hamid.sh.
Advisor
Advisor

Still not sure about your requirement, but I am guessing it's one of these:






Hamid
0 Likes
Message 9 of 20

hamid.sh.
Advisor
Advisor

@oystein.l.l wrote:

i wanted to create scoops for the square hull body on all side faces, example here like the scoops vents for airplanes, basically vent scoop for the square body on all side faces1221-P-M-K(2493).png


Then I think Sweep is the right tool. Check the one I attached in my previous post. You only need to make a path for the sweep. It can be sketch line, as I did in my file. But also you can do your normal extrude cut and later add a Draft on the faces (again like I did in my file, but only for one face).

Hamid
0 Likes
Message 10 of 20

oystein.l.l
Advocate
Advocate
no. i want a angle on bottom and a angle downwards from the top i can draw it 🙂
0 Likes
Message 11 of 20

oystein.l.l
Advocate
Advocate


0 Likes
Message 12 of 20

hamid.sh.
Advisor
Advisor

@oystein.l.l wrote:



Draw it on a sketch on the side plane and extrude cut it:




Or use Draft twice.

Hamid
0 Likes
Message 13 of 20

g-andresen
Consultant
Consultant

Hi,

Targeted references require an insight into the current design.



Please share the file.

File > export > save as f3d on local drive  > attach it to the next post



günther

0 Likes
Message 14 of 20

TheCADWhisperer
Consultant
Consultant
Accepted solution

Is something like this what you are attempting to do (see Attached file)?





0 Likes
Message 15 of 20

oystein.l.l
Advocate
Advocate
Yes exactly just both should be symmetrical, looks good how did you do it?
0 Likes
Message 16 of 20

oystein.l.l
Advocate
Advocate
Also how do you get a view inside half the model? Always wondered that!
0 Likes
Message 17 of 20

TheCADWhisperer
Consultant
Consultant

@oystein.l.l wrote:
Yes exactly just both should be symmetrical

Not sure what this means?

I just followed your hand sketch.

Can you create another hand sketch that more clearly shows your symmetry Design Intent?

0 Likes
Message 18 of 20

TheCADWhisperer
Consultant
Consultant

Inspection tab> Section Analysis...







0 Likes
Message 19 of 20

TheCADWhisperer
Consultant
Consultant

@oystein.l.l wrote:
... how did you do it?

Examine the Timeline.

The history of how I did it is recorded in the Timeline.

0 Likes
Message 20 of 20

oystein.l.l
Advocate
Advocate
Thank you so much for the help and time to explaining
