Profile view dim anchor options for structures?

Profile view dim anchor options for structures?

RobertEVs
Advisor Advisor
907 Views
2 Replies
Message 1 of 3

Profile view dim anchor options for structures?

RobertEVs
Advisor
Advisor

I don't think this is possible, but I shall ask anyways. I know I can set anchor options for anything profile label related but is it at all possible to get this to work for structure labels or is it an entirely different animal? I have to manually drag all my gravity structure labels to the top outside of my profile view grid.

0 Likes
Accepted solutions (1)
908 Views
2 Replies
Replies (2)
Message 2 of 3

MMcCall402
Mentor
Mentor
Accepted solution

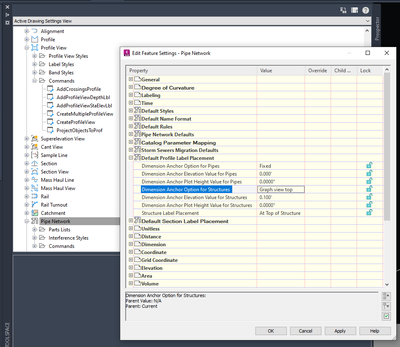

Here you can set a default anchor location for structure labels in a profile view to be anchored to the top of the view.






Mark Mccall
CAD Mangler


EESignature


VHB - Engineering, Inc.

Message 3 of 3

RobertEVs
Advisor
Advisor

Wunderbar!! I thought since my label style has a vertical drag state this may not work but low and behold it did. Thanks Mucho!!
