Actuator Block wrong location for multiport valve in 3D model

[Matias.Martin79]

Hello,

I have the following problem, I am using the Tuchenhagen multiport valve catalog but I need to change the actuators to make them look more realistic. I have generated the actuator block and I have generated the PLANTPARTCONVERT.

I assigned the actuator to the valve and everything works perfect

The problem is that when I modify the angle in the lower housing, the insertion point is modified in the Y axis

Otherwise, the insertion point moves on the X axis

does anybody know how I can fix it?

I would need that in all cases the insertion point be the same

Thank you

[WWBierma]

Did you found the solution or a work around for this problem?

I have the same problem in Plant 3D 2020 and it is very annoying.

[Matias.Martin79]

no

[WWBierma]

That sucks...

[orA3ZRE]

I have same problem, but if you write 0.000001 it is ok

[rajendra.prajapat]

@Matias.Martin79  please put the angle as per below:

Angle  = current angle value  + 0.0000000001

for exmalpe 90

Angle= 90+0.0000000001=90.0000000001

then actuator will not move.

[joakim_lindh]

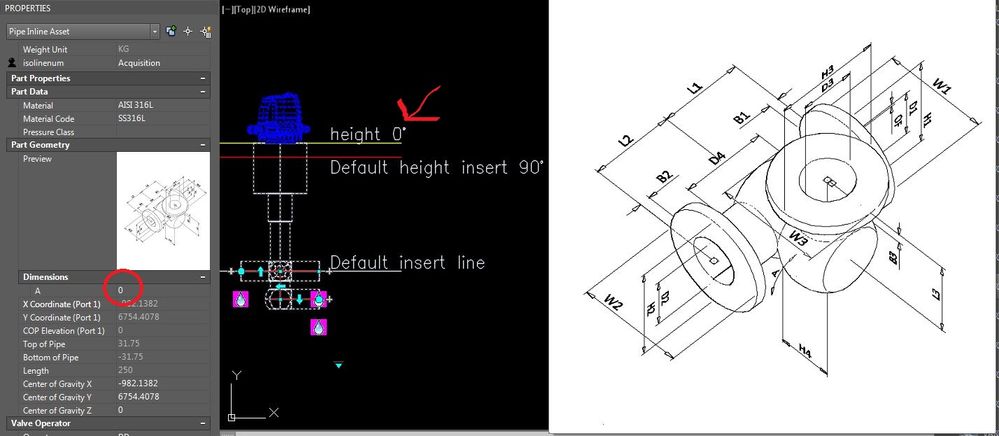

The actuator for multiportvalve need to lay down flat and point in +Y when you create the block for it.
Following this guide may help you. We hade the same issue until we found out how multiport valves are treated by the system.

Isometrics- 3 Way Safety Selector Valve (Multiport Valve) - Autodesk Community
