How to split text above and below the dimension line

[mikec]

hello all. I am wondering how I make my dimension look like    2.249"  top dimension and bottom dimension

                                                                                                                2.245"

Can anybody help me?

Thank you,

MIke

[The subject line of this post has been edited for clarity by cheryl.buck from: split dimension ]

[cheryl.buck · Accepted solution]

Hi Mike (@mikec),

One way that text can be split above and below the dimension line by adding \X where you want the break. Note, it must be a capital X.

Please let me know if this answers your question.

All the best,

If a post was helpful, Likes are always welcome.

Please Accept As Solution any post(s) that answer your question or solve the problem.

[cheryl.buck]

Hi @mikec,

I am checking back to see if my post helped you with your problem.

Please post an update letting the community know if you were able to resolve the issue.

All the best,

[greg.youngCXLLN]

Hi Cheryl, is there a way to adjust (increase) the Text offset? When doing this?

Cheers

[tmboyd-corraliza23]

This thread is sooooo wrong and it just messed me up so it needs to be fixed right now. It's <>\X not JUST \X

[martynLAWNG]

Thanks, that worked perfectly

[patrick_austinARMYQ]

I found this post helpful. I always forget the capital X!!!

[meganS4E56]

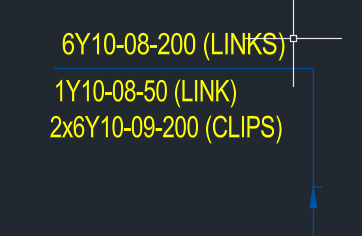

Hi there, I'm looking for some help to get the illustration of my text the way I want. I want one text on the top and tow text lines to be on the bottom like illustrated in the picture

[wolfgangorlinski]

Hi People,

Does anyone know how to make multiple lines? See the attached png.

I tried using e.g. GIB TO \X COLUMN GIB \X TBC however it only seems to allow one \X

anyone done this?

Cheers,

Wolf

[martynLAWNG]

The \X function only allows you to put part of the text below the dim line.

If you want to put the TBC part on another line, treat it as you would an MTEXT box. Either use the return key or contract the text box with the slider.

[wolfgangorlinski]

Thanks very much for your help Martyn, thats answered my question!

Cheers

Wolf
