setting property

[andre_andre168]

hi

i am new to autocad, pls help

i want to know how to set the property as picture number 1, currently is like picture number 2. that is a property of a line, i got from 2 diff files.  thank you

regards

andrepic 1pic 2

[Valentin-WSP]

@andre_andre168 ,

Welcome to the forum!

For Picture 1, draw a Polyline.

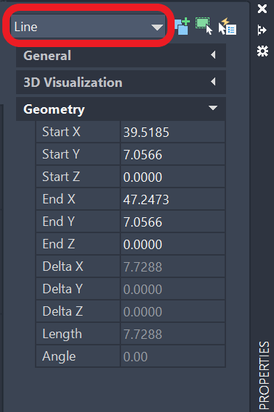

For Picture 2, draw a Line.

If currently a line, just use PEDIT to make it a Polyline:

[andre_andre168]

tyvm,

i use DIST, but how come the result is diff for the same line as shown on the pic. the correct distance is 19.2221, also the elevation is not 0

regards

andre

[cadffm]

0. Without your data, everyone have to guess only

1. You don't select the same point (see your osnap Icon), so that it is possible the problem (without your data, can't know that)

2. The main reason  will be different heights.
The DIST distance value refers to the distance between the points, not the projected distance on the view plane.

Share both objects (.dwg) and we show you the facts

[Valentin-WSP]

@andre_andre168 ,

Consider using the FLATTEN command, or change the Z value to 0.

• How to flatten a drawing in AutoCAD Products and AutoCAD LT

That usually happens when you have different "Start Z" or "End Z", as your sample shows:

[andre_andre168]

hi, ty

this is exactly in the same file and the same spot

andre

[andre_andre168]

hi

ty, yes, i think this is the problem, how to change z value to 0. i already read the link, but not all z become 0 when i use a command as below

Alternative to change the Z value of objects to zero

Use the CHANGE command:

1. Type in the CHANGE command.
2. Type ALL to select all objects and then Enter.
3. Type P for Properties.
4. Type E for Elevation.
5. Type 0 and then a final Enter to end the command.

andre

[cadffm]

Same file, okay

Same spot, NO it isn't.

Not the same Snap-Point. Just the same X and Y-position, but not the same Z-position.

Share the part of your DWG and we can show you what you are doing and why it is differently.

[Valentin-WSP]

@andre_andre168,

As @cadffm mentioned, share your file for everyone to provide you better answers.

Note: Make sure to FLATTEN any reference files (if any).

[andre_andre168]

hi, ty

@Valentin-WSP

@cadffm

here is the file

andre

[Valentin-WSP · Accepted solution]

@andre_andre168 ,

As mentioned before, use the FLATTEN command (while on TOP view).

After using the FLATTEN command:

[andre_andre168]

it solved, tyvm

andre
