crazy annotations

[Anonymous]

Hi, This recently happened to my file. Not sure how or how to resolve this. I have tried selectionannodisplay, scalelistedit,-scalelilstedit, reset of scales,deleted annotation scales, turned off my add scale when annotation scale changes. It is CAD 2015. Any assistance would be appreciated.

I have also restored from a previous version and this issue is not present. but because it has been worked in I can not go back to the previous version.

Thanks, Lanee

[TheCADnoob]

Would it help if you selected all the text and turn off annotation as well as make it a uniform text height in the properties menu?

[Anonymous]

@ TheCADnoob, I tried your suggestion and all the text became really small and disconnected from its leader. Im not sure how this happened but I appreciate the suggestion. Open to others.

[Todd_Rogers]

Is this model space or a layout? If it's model, did you scale the drawing?

[pendean]

share the DWG file please.

[john.vellek]

HI @Anonymous,

You indicate that the text is in Leaders? I suggest that you attach your file so I can examine your Style(s), your Scaling, and dimstyles. I hope to provide a quick and easy solution for you.

In Styles I suggest you remove Annotative Scaling and set the Height to 0.

You should now be able to Qselect all the text, and in properties assign it a height.

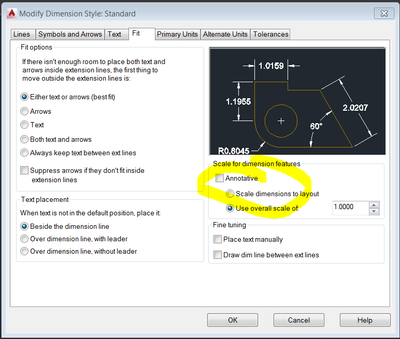

Similarly, go into your Dimstyles and turn off the Annotative feature.

Please post your results so I can assist you with this issue.

Please select the Accept as Solution button if my post fully solves your issue or answers your question.

[Anonymous]

The above view is in model space. The drawing is 1:1. The annotations were done in the viewport in paper space. Which was fine for several months than I work in a few days and this happened. not sure if there is a command for this?

[john.vellek]

HI @Anonymous,

Try creating a new viewport, copying the annotation over to it and verifying the Viewport scale.

[Anonymous]

Here is the DWG file.

[Todd_Rogers]

Toggle on the buttons shown below...

[Anonymous]

I have attached the DWG in another post. I would like to keep the annotation incase I need to modify the viewport scale. The text will adjust accordingly.

[Anonymous]

@Anonymous, I have tried those toggles already 😞

[john.vellek · Accepted solution]

HI @Anonymous,

I went into your drawing and removed all the annotative scales except 1:1 on your blocks and on most of your text.

I then changed your modelspace to 1:1. Everything is pretty much showing up normally. You can then try to add (selectively) the annotative scales back to items if necessary.

I am not sure why your leaders don't associate with the text any longer. This might be part of the damaged that was caused.

I have attached my copy of your drawing to see if any of this helps.

Please select the Accept as Solution button if my post fully solves your issue or answers your question.

[john.vellek]

Hi @Anonymous,

I am checking back to see if my post helped you with your problem. Please add a post with your results so other Forum users can benefit.

Please hit the Accept as Solution button if my post fully solves your issue or answers your question.
