pdf batch plot issues with AutoCADE 2015

Anonymous
Not applicable

Hi all



I have an issue with pdf batch plotting in AutoCADE 2015. This issue was there even when i was using AutoCADE 2013. Sometime back, based on some previous discussions here, i tried playing with the .pc3 file, but had no luck.

I have attached a sample pdf which i got using the batch plot command. And by the way, batch plot to printer is working all good.



0 Likes
1,407 Views
10 Replies
Replies (10)
Message 2 of 11

rhesusminus
Mentor
Mentor
I'm not able to se what issue you're having. Can you be a little bit more specific?

Trond Hasse Lie
EPLAN Expert and ex-AutoCAD Electrical user.
Ctrl Alt El
Please select "Accept Solution" if this post answers your question. 'Likes' won't hurt either. 😉
0 Likes
Message 3 of 11

Anonymous
Not applicable

Hi rhesusminus



Sorry, i admit that i wasn't clear at describing my issue here.. 🙂

If you see the attached pdf in my first post, you will see that some of the objects in the drawing are faded out and some are not.

This pdf was generated using batch plot to pdf option in AutoCADE 2015.



This problem is not there when i print each individual drawing to pdf.



Hope this explanation helps.

0 Likes
Message 4 of 11

Anonymous
Not applicable

Will anybody be able to help me with this pdf plotting issue?



Smiley Indifferent

0 Likes
Message 5 of 11

rhesusminus
Mentor
Mentor

Try to uncheck the "font replacement" when publishing to pdf.


Trond Hasse Lie
EPLAN Expert and ex-AutoCAD Electrical user.
Ctrl Alt El
Please select "Accept Solution" if this post answers your question. 'Likes' won't hurt either. 😉
0 Likes
Message 6 of 11

Anonymous
Not applicable

Hi rhesusminus



Where do i find the 'font replacement' option while publishing to pdf?

0 Likes
Message 7 of 11

rhesusminus
Mentor
Mentor

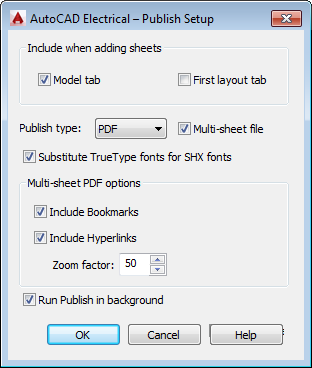

Substitute TrueType etc.
