ACADE 2024 BATCH PLOT VS PLOT - LINE WEIGHT ISSUE

russell_bumfordDGN6N
Participant
Participant

I have seen similar issues posted here and I have tried many solutions to no avail.

When I plot individual sheets to pdf, they print fine (plot from model)- plot setting:


Result:




When I use PUBLISH to PDF in project manager certain lines print at a different weight. Lines are same layer with same properties in the drawing

Publish settings:



result:




0 Likes
Accepted solutions (1)
461 Views
15 Replies
Replies (15)
Message 2 of 16

arshdeepsingh404
Collaborator
Collaborator

Can you type PAGESETUP command and open the "Elec Plot" settings, and post a screenshot please.



Also, does checking the box plot object lineweights help?






Arshdeep Singh
C.Tech, CMSE®

Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.

EESignature

Message 3 of 16

russell_bumfordDGN6N
Participant
Participant

Hi @arshdeepsingh404  Thanks for your reply. elec plot screen shot:


If I select plot object lineweights it helps on that particular line but  prints all others with a really heavy weight and all the text very light. I've inherited the dwg's so some of the layer settings are probably off, however still doesnt explain why lines on the same layer print differently.

0 Likes
Message 4 of 16

russell_bumfordDGN6N
Participant
Participant

Hi @arshdeepsingh404  I have been trying many different options to get this to work but still no success. I get very nice pdf's when I individually plot but once I try and publish through manager the line weights are just not great.

I tried using PLOT from the project manager menu instead. See screen shots. These settings are the same as individual plots. This time I get a blank sheet except for the plot stamp!







Message 5 of 16

arshdeepsingh404
Collaborator
Collaborator

Do all of the drawings use the same plot settings when doing a batch plot?




Can you try creating a new named page setup using the PAGESETUP command on the very first drawing? Then, during batch plot, Press CTRL+A to select all drawings, and from the drop-down, select the new page setup that you created.



Also, try using the monochrome pen assignment.






I think I will need to look at drawing files to do more troubleshooting, Is it possible for you to share a couple of dwgs?



Arshdeep Singh
C.Tech, CMSE®

Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.

EESignature

Message 6 of 16

CGBenner
Community Manager
Community Manager

@russell_bumfordDGN6N



Hello, do you still need help with this question?

Did you find a post helpful? Then feel free to give likes to these posts!
Did your question get successfully answered? Then just click on the 'Accept solution' button.  Thanks and Enjoy!


Chris Benner
Community Manager

0 Likes
Message 7 of 16

russell_bumfordDGN6N
Participant
Participant

Yes I do. Trying out the latest suggestions today - had another issue that wouldn't allow me to open ACADE which is now sorted

0 Likes
Message 8 of 16

russell_bumfordDGN6N
Participant
Participant

Hey @arshdeepsingh404 . I tried your suggestions and still have the same issue. I have attached a few DWG's

0 Likes
Message 9 of 16

arshdeepsingh404
Collaborator
Collaborator

Hello @russell_bumfordDGN6N



Check out the settings I used and attached PDF results.

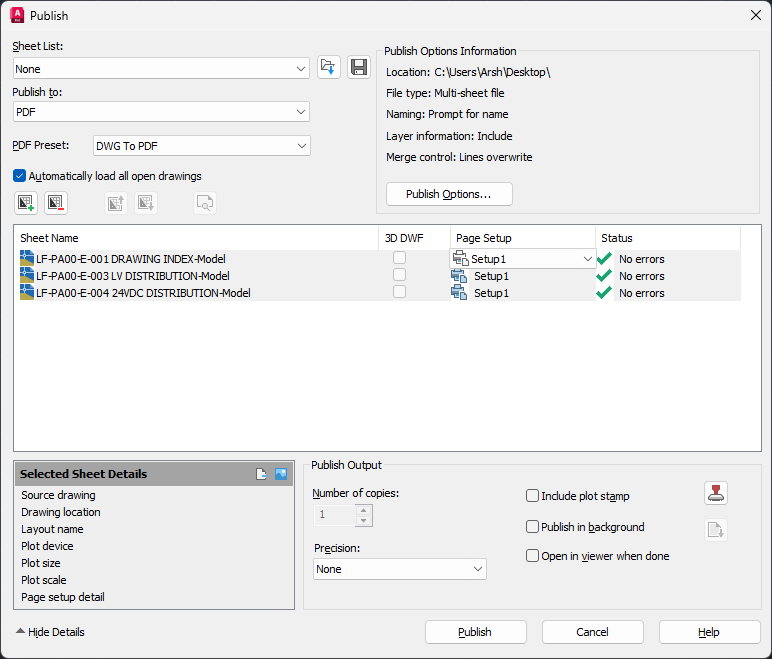

Batch Plot (PUBLISH)













Single Page Plot









The results look pretty similar.
One thing I did change was to set PDFSHX to 0, This can sometime leads to light liveweights and SHX text comments in PDF.



Arshdeep Singh
C.Tech, CMSE®

Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.

EESignature

Message 10 of 16

CGBenner
Community Manager
Community Manager

@russell_bumfordDGN6N



Hello, do you still need help with this question?

Did you find a post helpful? Then feel free to give likes to these posts!
Did your question get successfully answered? Then just click on the 'Accept solution' button.  Thanks and Enjoy!


Chris Benner
Community Manager

0 Likes
Message 11 of 16

russell_bumfordDGN6N
Participant
Participant

Yes I am still having the same issue I don't know whether its an Adobe problem as it displays fine in a browser. Just don't understand why, when all lines are on the same layer and have exactly the same properties why they display differently

0 Likes
Message 12 of 16

arshdeepsingh404
Collaborator
Collaborator

@russell_bumfordDGN6N

Did you get a chance to try the PDFSHX suggestion that I mentioned above?



https://www.autodesk.com/support/technical/article/caas/sfdcarticles/sfdcarticles/Text-is-lighter-or...



Arshdeep Singh
C.Tech, CMSE®

Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.

EESignature

Message 13 of 16

russell_bumfordDGN6N
Participant
Participant

Yes I did. Same result unfortunately

0 Likes
Message 14 of 16

rhesusminus
Mentor
Mentor

Check this article: https://www.autodesk.com/support/technical/article/caas/sfdcarticles/sfdcarticles/Lineweights-do-not...



Especially that part about changing a setting in Adobe Reader.


Trond Hasse Lie
EPLAN Expert and ex-AutoCAD Electrical user.
Ctrl Alt El
Please select "Accept Solution" if this post answers your question. 'Likes' won't hurt either. 😉
Message 15 of 16

brett_cci
Enthusiast
Enthusiast

In addition to @arshdeepsingh404's suggestion to change PDFSHX variable to 0, try changing variable AEPDFFONTALT to OFF. I ran into the same or similar situation many years back. Those (2) variables fixed the PDF print issues I was having at the time.

0 Likes
Message 16 of 16

russell_bumfordDGN6N
Participant
Participant
Accepted solution
