Countersunk Hole Not showing up in Assembly Drawing

[Anonymous]

Hi there

I'm have an assembly drawing with a front and top view of the object in question. A set of Countersunk holes shows up fine in one of the views but in the other view, they do not appear. I've attached a picture of the drawing. The countersunk holes are on a plate on the left side of the assembly.

Thanks for any help!

[crydee-AG1 · Accepted solution]

HI,

You can tell very little from a simple image. It looks like your drawing style is not set to show countersunk holes in the front view.

[Sebastian_Eiche]

I think this is the problem, we additional discuss in another thread:

here

[Miguel_Abreu]

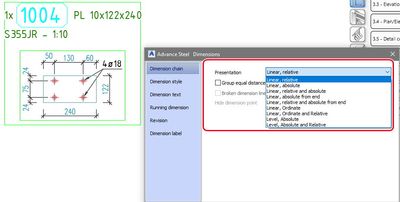

How can I set the dimension shown in the attachment?

 thank you

[Sebastian_Eiche]

double click on the dimension and then change the type of the dimension. If you want to do this for everytime, it had to be done in the drawing style manager

[Miguel_Abreu]

I can not find.

You can attch an image?

Thank you.

[Sebastian_Eiche]

you only had to double click on the created dimension. if you want to change it on a complete details just select one dimension, right mouse button click and then "select similar" then right mouse button click "Advance properties" and you will see the dialog, where you could change it.

[Miguel_Abreu]

Sorry, but I do not find this dimension style. Sorry

[Sebastian_Eiche]

you want to change the dimension style...in you first pic it look like you want to change the presentation.

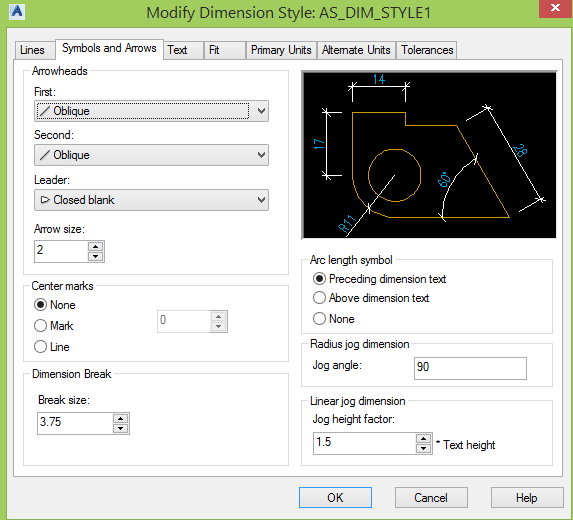

The dimension style could be change in the "dimension style" tab. You could use the dimestyle1. If this is not what you want, you had to change the dim style on your prototype to have your own one.

[Miguel_Abreu]

Thank you for your patience.

I do not know where to find this option.

[Sebastian_Eiche]

this is in the first tab "Lines" there should be a value for the "distance to origin" or something similar
