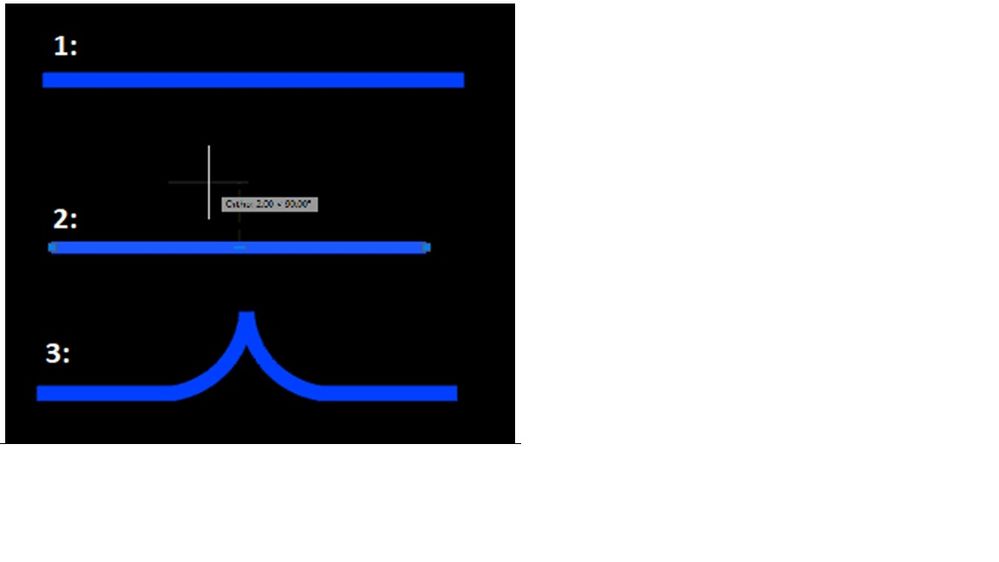

I need to separate polyline by point on it and add a curve from a polyline to this point like it drawn on picture with option to reverse this curve and join polyline after all..
Is it possible to do it programmatically (via lisp function)?
Any help or suggestions will be very appreciated
Would this always be in a single-line-segment Polyline as in the picture [which shouldn't be too difficult], or would it sometimes be in segment within a longer Polyline [much more complicated, I think]?
Try this lisp. Tested in WCS and UCS, but not for 3D rotated polylines; new vertex only on straight segments, IF there is enough space to draw the arcs. Also, feel free to add your favorite error trap.
;Add vertex to polyline
;Stefan M. 30.10.2018
(defun c:adv ( / *error* add_vertex e p1 p2 d a b1 b2 u q g)
;;; (setq *error* (err))
(defun add_vertex (e a p)
(vla-addvertex e a
(vlax-safearray-fill
(vlax-make-safearray vlax-vbDouble '(0 . 1))
(list (car p) (cadr p))
)
)
)
(if
(and
(setq e (ssget "_+.:S:L" '((0 . "LWPOLYLINE"))))
(setq e (vlax-ename->vla-object (ssname e 0)))
)
(while
(setq p1 (getpoint "\nSpecify point to add vertex: "))
(setq p1 (trans p1 1 0)
p2 (vlax-curve-getclosestpointto e p1)
a (fix (vlax-curve-getparamatpoint e p2))
)
(if
(and
(equal (vla-getbulge e a) 0.0 1e-8)
(setq d (distance p1 p2)
b1 (vlax-curve-getpointatparam e a)
b2 (vlax-curve-getpointatparam e (1+ a))
)
(and
(> d 0)
(> (distance b1 p2) d)
(> (distance b2 p2) d)
)
(setq u (angle b2 b1)
q (<
(* (- (cadr p1) (cadr b1)) (cos u))
(* (- (car p1) (car b1)) (sin u))
)
g (* (if q 1 -1) (1- (sqrt 2)))
)
)
(progn
(add_vertex e (+ 1 a) (polar p2 (angle p2 b1) d))
(add_vertex e (+ 2 a) p1)
(add_vertex e (+ 3 a) (polar p2 (angle p2 b2) d))
(vla-setbulge e (+ 1 a) g)
(vla-setbulge e (+ 2 a) g)
)
)
)
)
;;; (*error* nil)
(princ)
)
