Connect all the blocks without going over a polyline

[jtm2020hyo]

It's possible connect all selected blocks with a polyline but without going over a polyline.?

[3wood]

Something like this?

LINKPOINTS.

[jtm2020hyo]

---

@3wood wrote:

Something like this?

LINKPOINTS.

---

yes. something like that (in images). I can not make work that file, that vlx file just shows me next window:

...but I need something like that vlx try do.

I attached a lisp routine that works 50% how I need it.

Here is an example of how it works:

...as you can you see some polylines are going over other polylines. What I need is fix that.

[jtm2020hyo]

I attached 3 lisp-routines that could be useful to make a base

[3wood]

Something like this?

I guess  the only 2 rules are:

Link all blocks.

No cross over.

[ВeekeeCZ]

No big ideas in here...

(defun c:BConnectNoX (/ ss pts)

  (if (and (setq ss (ssget '((0 . "INSERT,CIRCLE,POINT"))))
	   (setq pts (mapcar '(lambda (e)
				(cdr (assoc 10 (entget e))))
			     (vl-remove-if 'listp (mapcar 'cadr (ssnamex ss)))))
	   (setq pts (vl-sort pts (function (lambda (e1 e2) (< (cadr e1) (cadr e2))))))
	   (setq pts (vl-sort pts (function (lambda (e1 e2) (< (car e1) (car e2))))))
	   )
    (entmake (append (list (cons 0 "LWPOLYLINE")
			   (cons 100 "AcDbEntity")
			   (cons 100 "AcDbPolyline")
			   (cons 90 (length pts))
			   (cons 70 0))
		     (mapcar (function (lambda (p) (cons 10 p))) pts))))
  (princ)
  )

[jtm2020hyo]

Interesting proposal.

apparently, work like Tcount.lsp:

[jtm2020hyo]

there are more rules that I need add:

+the first rule, the blocks should be linked to the next nearest block no matter rotation or angle.

+the second rule, the LISP routine should work with dynamic blocks and regular blocks. (for some reason 20% of lisp routines that user does not work with dynamic block)

here an example using attached lisp routine (Connect_Blocks-all-option-by-dbhunia.lsp). red-polylines are what I need to fix.

 file, where I tested it, is attached.

[dlanorh]

If you omit blocks and just consider their insertion points as points, it is a join the dots problem. The problem is Rule 1. It won't allow a solution in most random situations, if it must connect to the next nearest point.

Look at this thread. https://www.theswamp.org/index.php?topic=30434.0

[jtm2020hyo]

the problem is with the next marked blocks...

if possible connect that blocks to their nearest block to their intersections, like this:

...final result should be like this. (connecting all point without going over other)

... final lisp should work with dynamic blocks and regular blocks.

[Kent1Cooper]

---

@jtm2020hyo wrote:

...final result should be like this. (connecting all point without going over other)

….

---

That image now violates the request in Message 1 to "connect all selected blocks with a polyline."  You need to pin down more precisely what you really want to happen.

[jtm2020hyo]

---

@dlanorh wrote:

If you omit blocks and just consider their insertion points as points, it is a join the dots problem. The problem is Rule 1. It won't allow a solution in most random situations, if it must connect to the next nearest point.

Look at this thread. https://www.theswamp.org/index.php?topic=30434.0

---

I was reading that post and I found that they are trying creating geometric figures. that should be a lot more hard to be created. I just need to connect all block or points (base point) without going over other polylines.

[jtm2020hyo]

yes, you are right.

I just need to connect all points without going over other. no matter how or what to use.

[jtm2020hyo]

Here I leave an attached lisp created by @dbhunia, might be useful.

this lisp connect selected block with their nearest blocks and have options for limit length.

[Kent1Cooper]

---

@jtm2020hyo wrote:

yes, you are right.
I just need to connect all points without going over other. no matter how or what to use.

---

Have you seen >this topic< ?

[jtm2020hyo]

---

@Kent1Cooper wrote:

---

@jtm2020hyo wrote:

yes, you are right.
I just need to connect all points without going over other. no matter how or what to use.

---

Have you seen >this topic< ?

---

Yes. I already tried but I need to create a link between the nearest blocks.

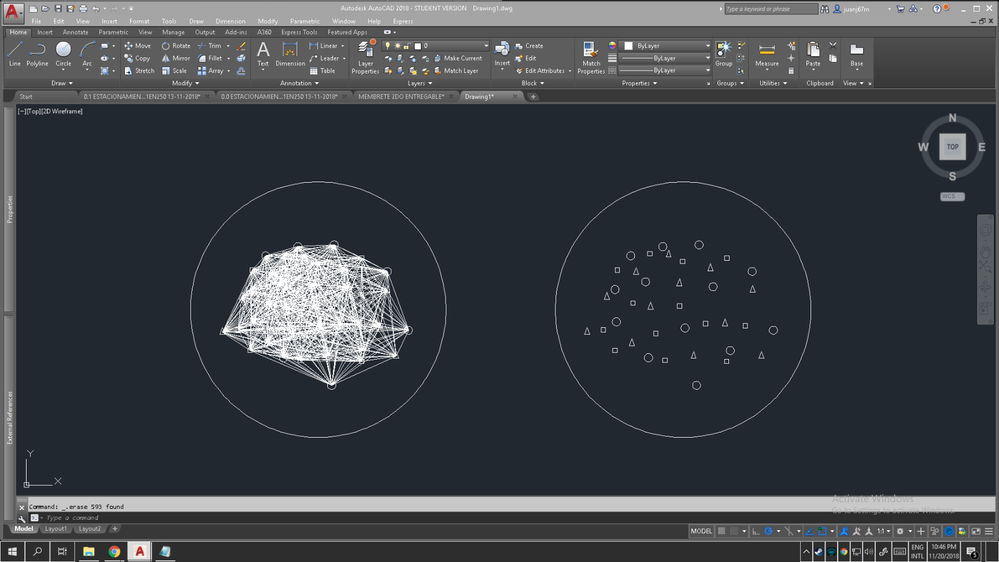

I tried to use the solution marked in that post but is not what I need, that gives me this:

edit: attached file where I tested your code.

[dlanorh]

Post your drawing in 2010 format

[jtm2020hyo]

---

@dlanorh wrote:
Post your drawing in 2010 format

---

here is attached my test drawing in 2010 version

[jtm2020hyo]

Your LinkPoints look interesting, Can you fix your code? or maybe I'm doing something bad? I'm pretty interesting in try to test your code.

[jtm2020hyo]

I found a lisp-routine that might help to solve this issue. (first attached)

"slbl2" auto-select blocks that are touching selected polylines. simply that.

exactly what we need. now we need to someone to combine it with "Connect_Blocks-all-option-by-dbhunia" lisp-routine. (attached below)
