Attribute

1b-gzde · ‎12-20-2022

Hello. We need a lisp to change every line of a table into attributes. In other words, every line of the table should be a group of attributes. Attribute text must have a designated layer. Attached, you can find the sample file. Does anyone have something like this, or interseted in writing it? Please let me know. Thank you.

ВeekeeCZ · ‎12-20-2022

Post the example - say one line - of what the desired result should look like.

1b-gzde · ‎12-20-2022

This is my table

This is how it should be. (Has desired layers and attributes)

This shows all desired attributes. I have also added dwg file to make it clearer.

ВeekeeCZ · ‎12-20-2022

Do these tables/lines always have the same structure? The texts are (their insertion points) always at the same coordinates relative to the line frame?

I mean, what could be done is replace your text line with inserted block "VL_STL_8" and fill up the attributes.

But if you need to convert ANY line of texts to a newly created block that will match that structure...

1b-gzde · ‎12-20-2022

That is a good point, but it doesn't fully meet our needs. Because what we actually need is make this process faster.

We export the tables from another program (which also means tables have the same structure). And we have a lot of these tables, and want to make every single one attributed. We don't prefer to manually change them, we want to automate the process, if possible. However we don't need something to change every type of text line into attribute. What I posted in my previous post as what we have and what we need is the only type we have. We can use a solution that works with only these tables. Do you think that is possible?

ВeekeeCZ · ‎12-20-2022

@1b-gzde wrote:

That is a good point, but it doesn't fully meet our needs. What exactly does not meet your needs.

Because what we actually need is make this process faster. Faster than what?

We export the tables from another program (which also means tables have the same structure). And we have a lot of these (exactly same structured?) tables, and want to make every single one attributed. We don't prefer to manually change them, we want to automate the process, if possible. However we don't need something to change every type of text line into attribute. ??? What I posted in my previous post as what we have and what we need is the only type we have. We can use a solution that works with only these tables. Do you think that is possible?

Just to be clear. What I can do is create a routine that will select all purple plines of the length of 3255.064 units, read all the texts within that pline, insert your predefined block at the upper right corner and fill in the attributes. That's all I can offer. Not going to create a block on the fly. Especially not something as fancy as this block of yours.

1b-gzde · ‎12-20-2022

I meant to say faster than filling attributes by hand, one by one.

Yes, all the tables have the same structure.

I think, what you offered to do is what we need.

ВeekeeCZ · ‎12-21-2022

OK, here you go.

You need to fill up the rest of the table, distance (3 decimals) with att name.

Haven't figured out an easy way to distinguish the header from the common lines (it's the same closed purple pline).

(vl-load-com)

(defun c:TextToBLSTL8 ( / d *error* atd atr doc s i e v p w z l b)

  (setq d '( ; dist Upper-Left Corner to Text Alignment point
	    (32.690  . "PLANNUMMER")
	    (288.921 . "ARTIKELNUMMER")
	    (883.445 . "ANZ")
	    ))

  (defun *error* (errmsg)
    (if (not (wcmatch errmsg "Function cancelled,quit / exit abort,console break,end"))
      (princ (strcat "\nError: " errmsg)))
    (if atd (setvar 'attdia atd))
    (if atr (setvar 'attreq atr))
    (if z (command-s "_.zoom" "_p"))
    (vla-endundomark doc)
    (princ))

  (if (and (or (tblsearch "block" "BL_STL_8")
	       (alert "Routine Error: The drawing does not contain the 'BL_STL_8' block!"))
	   (princ "\nSelect table common lines,")
	   (setq s (ssget '((0 . "LWPOLYLINE") (62 . 6) (-4 . "&=") (70 . 1))))
	   (setq atd (getvar 'attdia)) (setvar 'attdia 0)
	   (setq atr (getvar 'attreq)) (setvar 'attreq 0)
	   (not (vla-startundomark (setq doc (vla-get-activedocument (vlax-get-acad-object)))))
	   (setq z (vl-cmdf "_.zoom" "_e"))
	   )

    (repeat (setq i (sslength s))
      (if (and (setq e (ssname s (setq i (1- i))))
	       (equal (getpropertyvalue e "Length") 3255.064 1e-3)
	       (setq v (mapcar 'cdr (vl-remove-if '(lambda (x) (/= (car x) 10)) (entget e))))
	       (setq p (car v))
	       (setq w (ssget "_WP" v '((0 . "TEXT"))))
	       (setq w (vl-remove-if 'listp (mapcar 'cadr (ssnamex w))))
	       (setq l (mapcar '(lambda (x) (cons (distance p (cdr (assoc 11 (entget x)))) (cdr (assoc 1 (entget x))))) w))
	       (setq l (vl-sort l '(lambda (x1 x2) (< (car x1) (car x2)))))
	       (vl-cmdf "_.insert" "BL_STL_8" "_s" 5 "_r" 0 "_non" p)
	       (setq b (entlast))
	       (entmod (append (entget b) '((8 . "0"))))
	       (entdel e)
	       (mapcar 'entdel w)
	       )
	(foreach e l
	  (foreach f d
	    (and (equal (car e) (car f) 1e-3)
		 (vl-catch-all-apply 'setpropertyvalue (list b (cdr f) (cdr e)))))))))
  (*error* "end")
  )

1b-gzde · ‎12-21-2022

That works. Thank you

ВeekeeCZ · ‎12-22-2022

One little upgrade.

* now it replaces all the lines automatically

* header is recognized and preplaced (some differences from the common line block seem... hmm silly. Why different font, why different insertion points, why different alg point?!)

* also fixed that generally used FIT alignment method to be applied only in case it's needed.

(vl-load-com)

(defun c:TextToBLSTL8 ( / d *error* :getattents atd atr doc s i e v p w z l b a)

  (setq d '( ; dist Upper-Left Corner to Text Alignment point
	    (32.690  . "PLANNUMMER")
	    (288.921 . "ARTIKELNUMMER")
	    (589.820 . "ARTIKELBEZEICHNUNG")
	    (883.445 . "ANZ")
	    ))

  (defun *error* (errmsg)
    (if (not (wcmatch errmsg "Function cancelled,quit / exit abort,console break,end"))
      (princ (strcat "\nError: " errmsg)))
    (if atd (setvar 'attdia atd))
    (if atr (setvar 'attreq atr))
    (if z (command-s "_.zoom" "_p"))
    (vla-endundomark doc)
    (princ))

  (defun :getattents (e / l)
    (while (and (setq e (entnext e))
		(= (cdr (assoc 0 (entget e))) "ATTRIB")
		(setq l (cons (cons (cdr (assoc 2 (entget e))) e) l))))
    l)


  (if (and (or (tblsearch "block" "BL_STL_8")
	       (alert "Routine Error: The drawing does not contain the 'BL_STL_8' block!"))
	   ;(princ "\nSelect table common lines <wählen sie alle>")
	   ;(or (setq s (ssget '((0 . "LWPOLYLINE") (62 . 6) (-4 . "&=") (70 . 1))))
	   ;    (setq s (ssget "_X" '((0 . "LWPOLYLINE") (62 . 6) (-4 . "&=") (70 . 1)))))
	   (setq s (ssget "_X" '((0 . "LWPOLYLINE") (62 . 6) (-4 . "&=") (70 . 1))))
	   (setq atd (getvar 'attdia)) (setvar 'attdia 0)
	   (setq atr (getvar 'attreq)) (setvar 'attreq 0)
	   (not (vla-startundomark (setq doc (vla-get-activedocument (vlax-get-acad-object)))))
	   (setq z (vl-cmdf "_.zoom" "_e"))
	   )

    (repeat (setq i (sslength s))
      (if (and (setq e (ssname s (setq i (1- i))))
	       (equal (getpropertyvalue e "Length") 3255.064 1e-3)
	       (setq v (mapcar 'cdr (vl-remove-if '(lambda (x) (/= (car x) 10)) (entget e))))
	       (setq p (car v))
	       (setq w (ssget "_WP" v '((0 . "TEXT"))))
	       (setq w (vl-remove-if 'listp (mapcar 'cadr (ssnamex w))))
	       (setq l (mapcar '(lambda (x) (list (distance p (cdr (assoc (if (= 0 (getpropertyvalue x "Justify")) 10 11) (entget x))))
						  (cdr (assoc 1 (entget x)))
						  (if (and (= 5 (getpropertyvalue x "Justify"))
							   (< (apply 'distance (textbox (vl-remove-if-not '(lambda (y) (vl-position (car y) '(1 7 40))) (entget x))))
							      (distance (getpropertyvalue x "Position") (getpropertyvalue x "AlignmentPoint"))))
						    0 (getpropertyvalue x "Justify"))))
			       w))
	       (setq l (vl-sort l '(lambda (x1 x2) (< (car x1) (car x2)))))
	       (if (= (cadar l) "Plannummer")
		 (and (or (tblsearch "block" "BL_STL_KOPF_8")
			  (alert "Routine Error: The drawing does not contain the 'BL_STL_KOPF_8' block!\nThe header did not replaced."))
		      (vl-cmdf "_.insert" "BL_STL_KOPF_8" "_s" 5 "_r" 0 "_non" (last v))
		      (setq b (entlast))
		      (entmod (append (entget b) '((8 . "0"))))
		      (mapcar 'entdel (cons e w))
		      nil)
		 T)
	       (vl-cmdf "_.insert" "BL_STL_8" "_s" 5 "_r" 0 "_non" p)
	       (setq b (entlast))
	       (entmod (append (entget b) '((8 . "0"))))
	       (mapcar 'entdel (cons e w))
	       (setq a (:getattents b))
	       )
	(foreach e l
	  (foreach f d
	    (if (equal (car e) (car f) 1e-3)
	      (progn
		(vl-catch-all-apply 'setpropertyvalue (list b (cdr f) (cadr e)))
		(vl-catch-all-apply 'setpropertyvalue (list (cdr (assoc (cdr f) a)) "Justify" (last e)))
		)))))))
  (*error* "end")
  )

1b-gzde · ‎12-23-2022

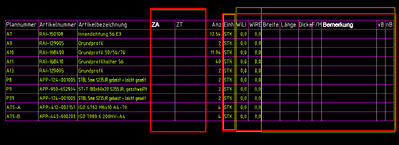

I tried the new version. I uploaded the results. Columns "Einh", "WiLI", "WiRE" comes as default, however they have their own values. Also, it doesn't include these marked columns. Is it possible to add them, too? They sometimes have values.

You are right about your comments, btw. I completely agree. I don't really know why they come like that. It comes from a 3d software that I am not familiar with.

Thank you

ВeekeeCZ · ‎12-27-2022

@1b-gzde wrote:

I tried the new version. I uploaded the results. Columns "Einh", "WiLI", "WiRE" comes as default, however they have their own values. Also, it doesn't include these marked columns. Is it possible to add them, too? They sometimes have values.

....

Sure it is. See my first reply, YOU need to fill the list with all the rest of the attributes. I did just a few to prove the concept and show you the syntax, but the rest is just repetitive task.
