VISIBLE POINTS WITH SECTION PLANES

jpresende5
Contributor
Contributor

All,



When using view planes, the elements which are not visible in the view, the points of those elements are still visible. Is there any option to make those point invisible too? Without turning off the calculation model (finite elements)?



Example: I have modeled a 3 floors building and when I reduce the z-z section plane to show only the 3rd level, the points of the other 2 floors are visible but not the panels. I have 0% transparency.



Thanks in advance.



Best Regards

0 Likes
Accepted solutions (2)
851 Views
3 Replies
Replies (3)
Message 2 of 4

Rafacascudo
Mentor
Mentor
Accepted solution
View/Display/Nodes , mark "hide nodes"

Rafael Medeiros
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.

EESignature

0 Likes
Message 3 of 4

Anonymous
Not applicable

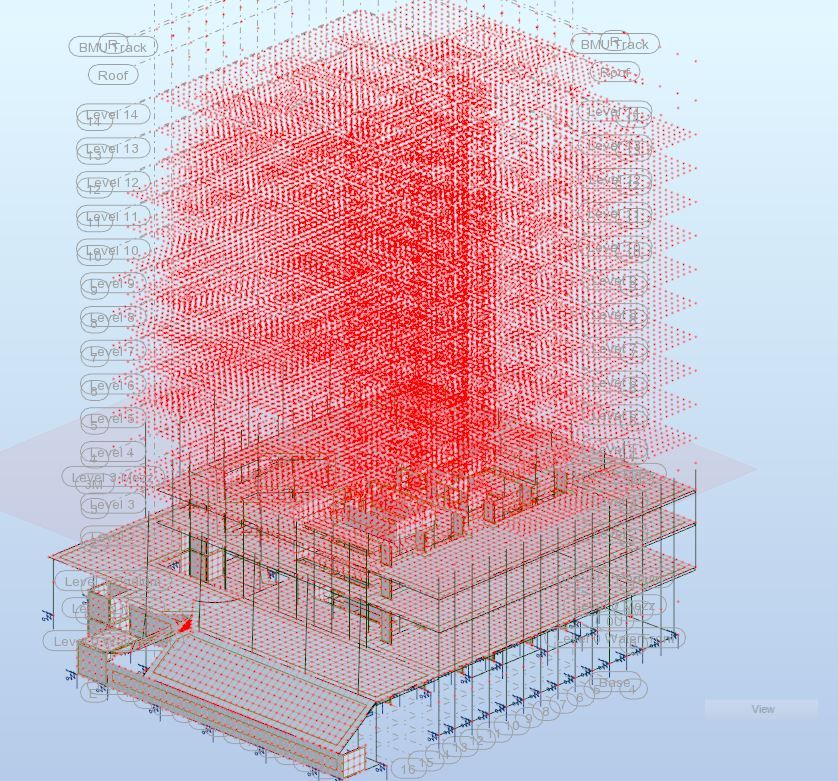

I also have this problem. The suggested solution hides ALL nodes where as I want to still see some nodes, but hide others beyond my view section planes. The view section planes hides all other items such as bars and panels but the nodes are still visible.ADR.JPG

0 Likes
Message 4 of 4

Artur.Kosakowski
Autodesk Support
Autodesk Support
Accepted solution

Hi @Anonymous



Corrected in the Update 1 for RSA 2019



Artur Kosakowski
