resultant force acting on a node

[saclovitzky]

Hello,

Is there a way to view the resultant force acting on a node,ie, node 3

Any help will be greatly appreciated

[Simau]

Hi @saclovitzky

You may try this API

https://forums.autodesk.com/t5/robot-structural-analysis-forum/local-reactions-api/td-p/13213319

[Krzysztof_Wasik]

Hi @saclovitzky

You can also try API available in that thread

https://forums.autodesk.com/t5/robot-structural-analysis-forum/envelope-of-forces-at-a-connection/m-...

[saclovitzky]

[Simau]

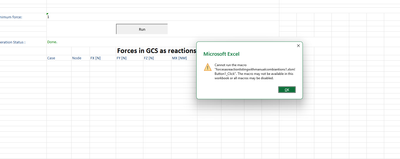

Macros might be disabled.

[saclovitzky]

@Simau ,I cannot open the excel(for wahtever reason).Please see attached model file.

Can you possibly run the API and send me the result in excel file for node 3(resultant force).

Thank you in advanced.

[saclovitzky]

I open now the apps but just wondering why there's no result in node 3?

[saclovitzky]

@Krzysztof_Wasik ,the link is no longer valid.

[Simau]

@saclovitzky

The zipped model is empty.

Send it again

[saclovitzky]

@Simau , pls. see attached again

[Simau]

@saclovitzky

please find results for node 3

[saclovitzky]

@Simau ,how do you manage to get the result on node 3, I've tried but I cannot get the result?

Can you show me how?

[Simau]

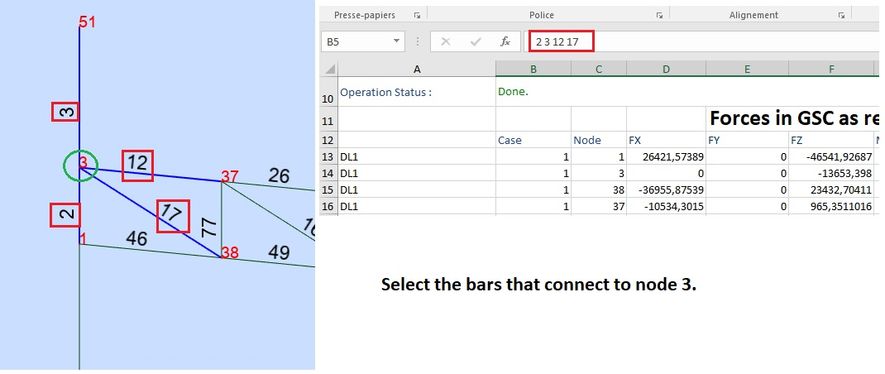

@saclovitzky
