Influence Lines on Trusses in Robot Structural Analysis Professional

ted.mckenna
Explorer
Explorer


Hi!



I'm using Robot to undertake 'Influence Line' analysis of various structures and have a number of issues which include the following:

1) Available guidance on how to undertake influence line analysis with Robot is extremely limited/non-existent - Do you know where I might find comprehensive guidance?

2) When undertaking influence line analysis on a pin-jointed truss, the load causes a moment in the diagonal members which should not be the case - How might I resolve this issue so that the moving load in applied to the bottom chord only?


Thank you in advance for any assistance offered.



0 Likes
Accepted solutions (1)
1,674 Views
6 Replies
Replies (6)
Message 2 of 7

Rafacascudo
Mentor
Mentor

On moving load dialog window ,try selecting only the bottom chord as application plane.

Rafael Medeiros
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.

EESignature

0 Likes
Message 3 of 7

ted.mckenna
Explorer
Explorer

Hi Rafael,

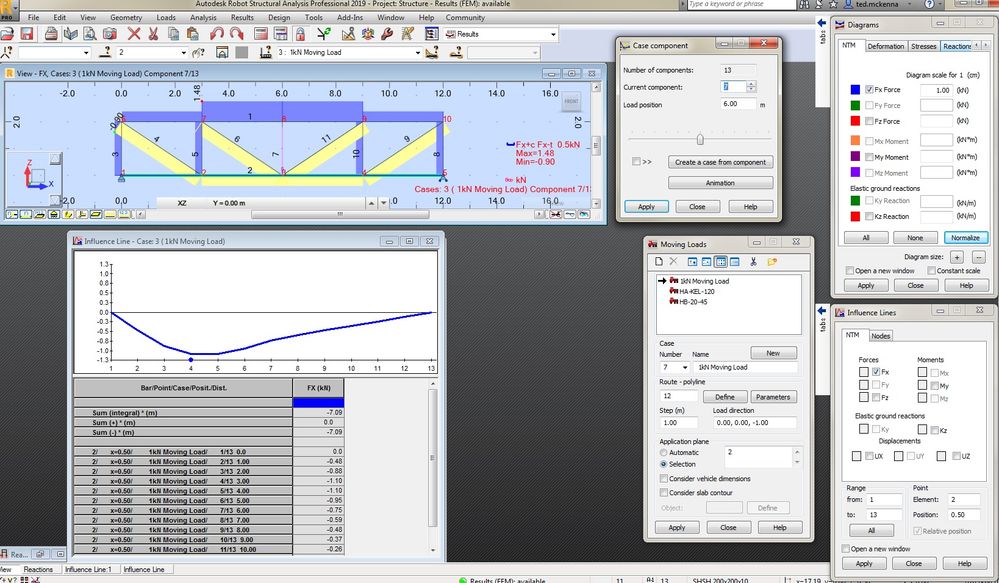

Thank you for that suggestion, it seems to have worked.  With this element now behaving as expected, I have moved on to viewing the Influence Line (IL) for the moving load.  When viewing the IL for the top chord all appears in order as shown in screenshot #1 below, however, the IL for bottom chord as shown in screenshot #2 below.  I welcome any suggestions on where I might be going wrong.  Thanks in advance!



Screenshot #1

IL as Expected for Truss Element 1.jpg

Screenshot #2

IL NOT as Expected for Truss Element 2.jpg

0 Likes
Message 4 of 7

Rafacascudo
Mentor
Mentor

It may seem strange  , but for this particular truss geometry and load position , the result is correct. Calculate it manually and you will notice it.


Rafael Medeiros
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.

EESignature

0 Likes
Message 5 of 7

ted.mckenna
Explorer
Explorer

Hi Rafael,

Thank you for the response, you are correct.  My confusion was coming from the fact that when I was selecting the criteria within the 'Influence Lines' options box, I selected a 'Point' on 'Element' 2 with a 'Position' of 0.5.  As I was selecting a point midway along the beam, I expected symmetry in the IL.  However, I now note that selecting a 'Position' of 0.5 results in Robot providing an IL for element 2 between nodes 2 and 3, while a 'Position' of 0.5001 results in Robot providing an IL for element 2 between nodes 3 and 4 (Diagram below refers).

Thank you for the your time and assistance, very much appreciated!

Refeernce Position on Truss.jpg

0 Likes
Message 6 of 7

Rafacascudo
Mentor
Mentor
Accepted solution

you should divide the chords into 4 bars. Results will be the same.

Rafael Medeiros
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.

EESignature

0 Likes
Message 7 of 7

ted.mckenna
Explorer
Explorer

Thank you!
