Hi everyone,



Could somebody please explain to me what do these parameters shown below mean?



The help menu doesn't say much about them.

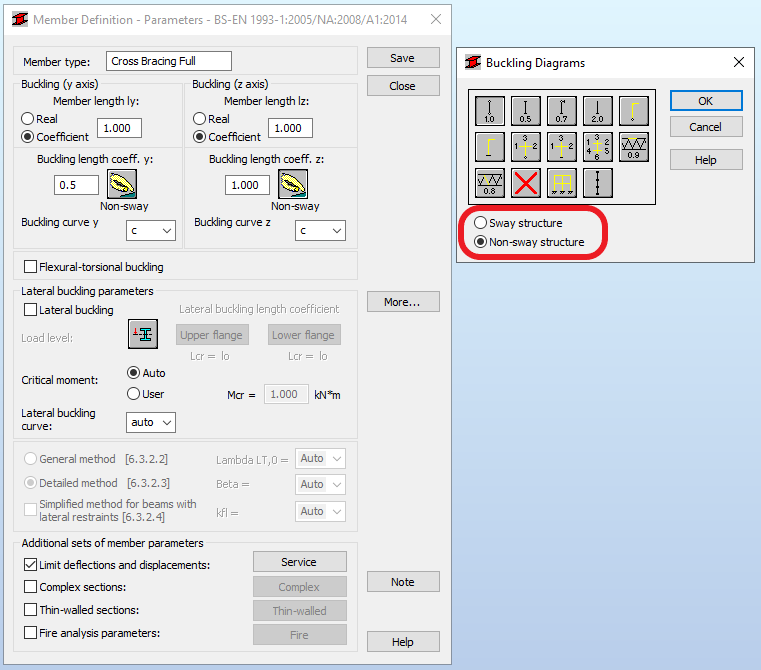

1) On the first image: If I define a buckling length, or select one of the predefined options, does it make any difference if I say that the member is sway or non sway? When should I use this option?



Buckling Diagrams.png





2) On the second image: Do pipes refer to hollow sections in general, or just round pipes? I am asking becuase further below it distinguishes and asks more specifically for round pipes.

Also what is this f_yb and f_ya parameter? Any reference to the Eurocode please?





additional parameters.png



Excuse my basic questions, but I would like to know exactly what the software does and not just use it as a black box.



Regards,

K





0 Likes
Accepted solutions (1)
910 Views
3 Replies
Replies (3)
Message 2 of 4

Krzysztof_Wasik
Autodesk Support
Autodesk Support
Accepted solution

Hi @kostastomp



Ad1 Buckling length coefficient calculation

When sway option is on automatic procedure for buckling length coefficient calculation




allow element horizontal displacement ( frame with no bracing)


In most cases buckling coefficient calculated automatically will be >1



When non-sway option is on, automatic  procedure for buckling length coefficient calculation does not allow element horizontal displacement ( frame with bracings)


In most cases buckling coefficient calculated automatically will be <1





Ad2.


Fyb and Fya refers to cold formed sections, EN-1993-1-3

paragraph  3.2.2 Material properties of cold formed sections and sheeting.



If I managed to answer your question(s) press the Accept as Solution button please. This will help other users to find solution(s) much faster. Thank you.







Krzysztof Wasik
Message 3 of 4

paul.bassLH
Advocate
Advocate

Hi,



1) the difference may be illsutrated with these two screenshots.

Non-sway structureNon-sway structureSway structureSway structure



2) It is not clear. To be honest, i don't know :/. Maybe just to condiser that hot rolled pipe have a yield stress slightly lower than cold formed pipe. Someone else have an idea ?



Regards

Message 4 of 4

kostastomp
Enthusiast
Enthusiast

Thank you both.



Paul, I know what a sway and and non-sway frame is. The fact that the sway-non sway button is not greyed out when selecting one of the standard (non automatic) buckling length settings.



0 Likes
