None of the created elements are visible in 3D View: analytical model View. You may want to check the active view, its Parameters, and Visibility settings.

why there isnt showing any highlights when i applying hosted load while analyzing

[mphungDCHNW]

You may want to check your Visibility settings the categorie your trying to insert might be turned off or unchecked

[alikdi26]

i cant see any analytical plan/view in my rvt 2020 version i enabled in vg options and i tried to make it by duplicating view but when applying template settings there is also no option to select structural

i tried it in structural template

in the abv photo there is only floor plan

but in structural plan also looks same situation

i cant see analytical in  view templates too to toadd new analytical templt

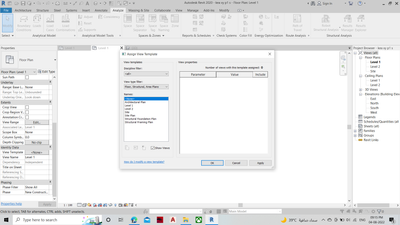

\screenshot attached dow

 

how can i do this help me to fix it

[mphungDCHNW]

Try changing to medium / course along with changing the view to realistic

[mphungDCHNW]

Click on view then click on " view templates" select "apply template to current view" then go turn on analytical.

[mphungDCHNW]

Click on view then click on " view templates" select "apply template to current view" then go turn on analytical.

[ToanDN]

Create new Structural plan, set Discipline to Structure, VG > Analytical tab and turn on Analytical categories.

[alikdi26]

 look sir , i cant add analysis isolated here becoz i dont have such a drop down  in view temp to add

nb: i have robott analysis already in pc

[mphungDCHNW]

If you have duplicated a Arch/Struct view just turn the analytical on and you will see it in the Setting you listed in the photo..

[alikdi26]

did it thanks

[mphungDCHNW · Accepted solution]

Did it work?

[alikdi26]

yes
