Fabric Reinforcement Symbol - Assembly Views

z.zecevic
Participant
Participant

Hi,

I am working on completing fabric reinforcement for precast walls using the assembly tool in Revit. However, I am encountering issues with annotating the fabric in the views generated within the Revit assembly.

In standard section or elevation views, I can add the Fabric Reinforcement Symbol (a diagonal line in this case) without any issues. However, when I try to do this in an assembly view, the tool in Revit becomes grayed out and is unavailable.

Am I overlooking something, or is Revit simply unable to incorporate this symbol into assembly views?
By the way, tagging the fabric in assembly views works perfectly fine.

I hope someone knows the solution.

Best regards


0 Likes
460 Views
4 Replies
Replies (4)
Message 2 of 5

jay_colcombe
Mentor
Mentor

The only place I think this could be applied would be in the Configuration Settings directly and not through Revit Assembly Views.

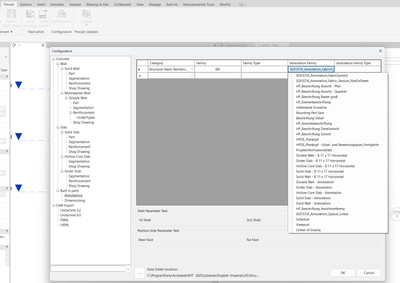

In the Configuration dialog, navigate to Concrete Built-in parts Annotations.








Jay Colcombe

Autodesk Certified Instructor
Revit Architecture & Structure Certified Professional
AutoCAD Certified Professional
B.Sc. Hons Civil & Structural Engineering

If you find my post interesting, feel free to give a Kudo.
If it solves your problem, please click Accept to enhance the Forum.
0 Likes
Message 3 of 5

tiagofrbr
Contributor
Contributor

I'm facing the same issue. Any solutions?

0 Likes
Message 4 of 5

GatisM
Advocate
Advocate

Hi,



I adressed this in Idea forum, please vote. Below link.
Assembly views allow all options as in regular views - Autodesk Community

Message 5 of 5

tiagofrbr
Contributor
Contributor

Voted! Thanks!!!
