Complicated concrete beam modeling

[dzkt98]

Hi guys, i'm having trouble with model beam on various slope floor. Floor sloping direction is the red arrow. i want to place concrete beam as horizontal and vertical direction (blue lines). the top elevation of beam must follow the top elevation of floor and bend when intersection between floors. i tried different methods but i have not found the correct way to model and constrain the beam for the most reliable elevation. i attached the floor as revit file at attachment.  please help me.

[jay_colc]

You need to set the Work plane to the Slope Draw the Beam aligned to the slope and then mitre or join where it changes direction

[dzkt98]

hi, thank you for being interest in the topic, i cannot open the file with revit 2024. May i have you contact for directing exchange?

[jay_colc]

Structure Tab > Set Workplane

Pick the Slope Face

Draw Beam

Trim to Corner

[dzkt98]

i draw as your method (direction as blue lines) but went i click to the end point - edge that floor changed slope, the start point of beam automatically goes to other point

[dzkt98 · Accepted solution]

i did it but it the elevation off the end point seem wrong, it suppose to higher than -500

[jay_colc]

Thank Look like it was drawn horizontally on plane, but you are correct and can edit this way manually but any changes manage to the slab/slope will manually need editing.

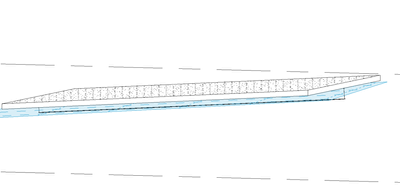

Aligning Reference Plane to bottom Face of Slab drawing beam follows slope

Edit Slab slope beams moves with reference
