Beam mirrored section

[j_pawlowskiQ4YZQ]

Hello,
Two beams with the same cross-section are placed in mirrored positions using 3D snap. When I attempt to mirror one of them to the correct position, it only rotates 180 degrees.
How can I properly mirror the section?

[jay_colcombe]

Mirror relates to the Workplane you are in and the Mirror line so this would influence the result can it be achieved by trying to mirror in a Plan View?

Try Setting a Reference Plane to the Top of the Beam prior to Mirror.

[j_pawlowskiQ4YZQ]

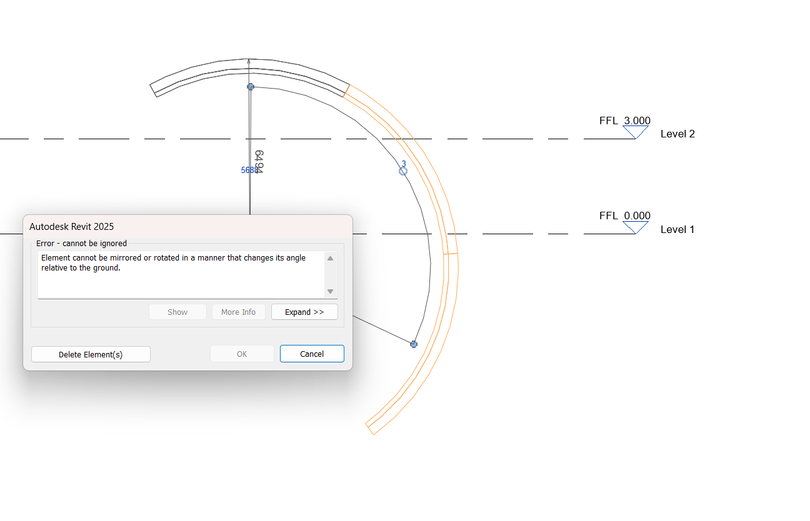

When I mirror in section view and set 180 in cross-section rotation parameter, the cross-section of the beam changes to the correct position. However, when I try to rotate it to achieve the correct curve orientation, it reverts back to the incorrect cross-section.
What’s more strange is that this issue only occurs with a few of the beams, not all of them.

[jay_colcombe]

It could be a limitation in the Beam/Family where if orientated differently it cannot resolve the shape so reverts back.

Difficult to fully determine without the Beam for reference.

[j_pawlowskiQ4YZQ]

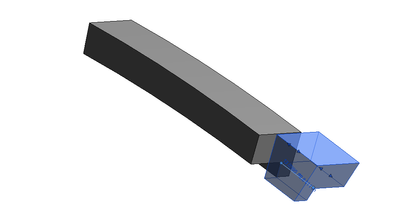

The family is in the attachment. I hope it will be helpful.

[jay_colcombe · Accepted solution]

It is definitely the way the Beam Shape works with the Mirror functionality and its relationship to how it was placed and the Level

I tried using the Array Tool Instead?  Create a Dimension to find the Centre Point > Radial Array Move To: 2nd Pick Start of Beam then End of Beam

[handjonathan]

Hi @j_pawlowskiQ4YZQ

Thanks a lot for posting your question to the forums!   Has the solution suggested by @jay_colcombe helped with your issue?
 
We look forward to hearing back from you with more information so we can help you as a community! 

[j_pawlowskiQ4YZQ]

This works.

1. create beam in any possition
2. create arch in correct start/end orientation
3. Align

Thanks a lot for help 😄

[handjonathan]

Amazing @j_pawlowskiQ4YZQ Glad you got it all sorted.
