Anyone know of a p-trap for Revit that can swivel at the joint of the st90 and the 180 like a real p-trap? Or are they all just fixed straight?



Revit lives in the land of perfect and doesn't understand what construction is.

0 Likes
1,352 Views
4 Replies
Replies (4)
Message 2 of 5

Lev97
Advocate
Advocate

Hope this Video helps.................

0 Likes
Message 3 of 5

ben
Collaborator
Collaborator

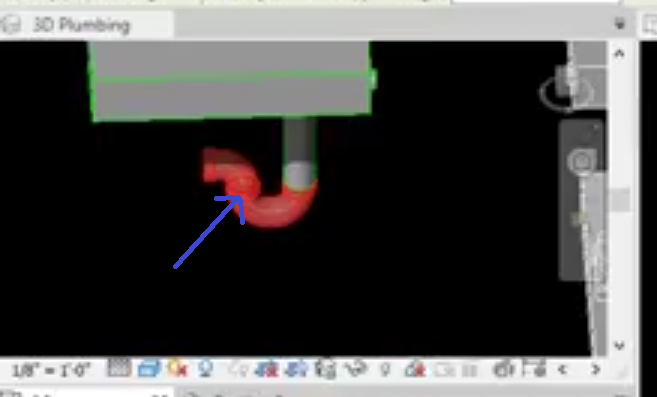

I was thinking more about having it swivel here

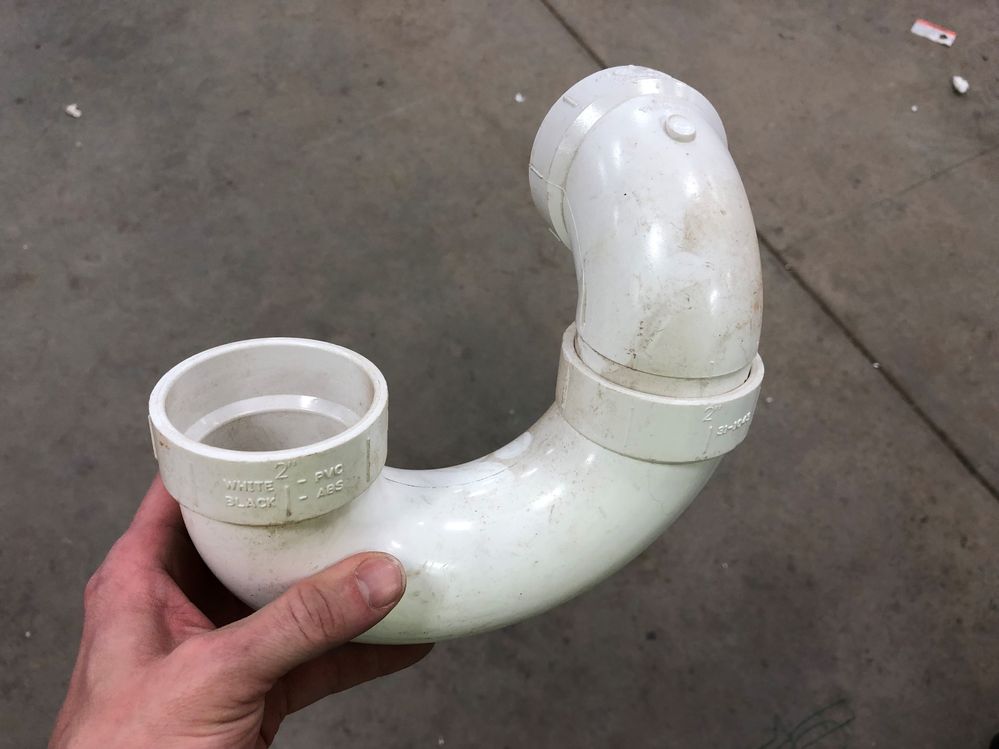

Like how p-traps can swivel in real life




so it can match up with things in the walls like washer boxes, where the pipe is centered in the wall the drain outlet on the fixture isn't. This would also be helpful on floor drains too






Revit lives in the land of perfect and doesn't understand what construction is.

0 Likes
Message 4 of 5

Lev97
Advocate
Advocate

....I see, Looks like you need a "Return Bend". Revit has a "Return Bend Medium-Pattern - Threaded - MI - Class 150.rfa" family you might want to try.....Good Luck.

0 Likes
Message 5 of 5

ben
Collaborator
Collaborator

Thinking trap and st90 separate?



Revit lives in the land of perfect and doesn't understand what construction is.
