Wood stud framing not being cut by windows and doors

Hello!

I just graduated from architecture school so please bare with me as I only have a few years of Revit under my belt. I am having trouble with cutting into wood stud components. I have recreated the studs through a structural column, architectural column, casework, generic model components and tried the cut function but nothing seems to cut out the window.  Is there a way to achieve this? I am wanting to do a lumber take off too, so the framing needs to be as accurate as possible. The 4 studs bunched together are different types of components that I mentioned.




12 ANTWORTEN 12
Nachricht 2 von 13
RDAOU
als Antwort auf: Anonymous

@Anonymous



You can use a void to cut with or the split tool ...depending on the element you want to cut

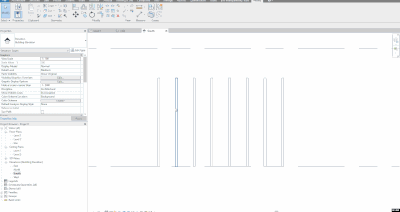

Split column.gif



An easier and more common way to do this is to use a curtain wall its mullions only and empty system panel..you can either edit profile to generate the cut or u can work with grids segments...Curtain wall mullions can be scheduled and the cw itself can also host windows and door by replacing a panel...













YOUTUBE | BIM | COMPUTATIONAL DESIGN | PARAMETRIC DESIGN | GENERATIVE DESIGN | VISUAL PROGRAMMING
If you find this reply helpful kindly hit the LIKE BUTTON and if applicable please ACCEPT AS SOLUTION


Nachricht 3 von 13
Anonymous
als Antwort auf: RDAOU

Hey @RDAOU

Thanks for the reply. I was looking at doing the curtain wall way but since this is meant to be pre-fab, the framing is a bit un-uniform so I'm not sure if the curtain wall way would work for this project.

I was hoping I could just input the windows and it would the studs automatically for me. Maybe wishful thinking.

Void form or cut might be my only option

Nachricht 4 von 13
barthbradley
als Antwort auf: Anonymous

Did you use a Beam System for the studs?  If so, and the Beam System still exists, you can edit the Beam System and add a sketch the boundary for the window opening inside the perimeter boundary.



Beam System10.png

Nachricht 5 von 13
Anonymous
als Antwort auf: Anonymous

I did not, no. It sounds like I have a few options to work with though.

Thank you for your ideas and input - this is really helpful :leicht_lächelndes_Gesicht:

Nachricht 6 von 13
Anonymous
als Antwort auf: barthbradley

Also, how did you draw this on a verticle rather than horizontal? I see a ref plane but Its not letting me create one vertically and only on plan view.
Nachricht 7 von 13
barthbradley
als Antwort auf: Anonymous


@Anonymous wrote:
Also, how did you draw this on a verticle rather than horizontal? I see a ref plane but Its not letting me create one vertically and only on plan view.



Create a Work Plane by drawing a Ref. Plane in Plan View and naming it.  Then in 3D View (or Elevation/Section View parallel to the RP), set it as the Work Plane to draw on using the Set Work Plane tool.



Set Work Plane 10.png

Nachricht 8 von 13
Anonymous
als Antwort auf: Anonymous

@barthbradley  I was able to get the work plane verticle but when I cut an opening in the sketch, the beams rotate where they meet the window




Nachricht 9 von 13
RDAOU
als Antwort auf: Anonymous

@Anonymous



Do you mean you want them to be rotated @ the window?



  1. Either split & Create another beam system...
  2. OR after you cut the opening
    • then Either  Select the System >>  from the Ribbon use Remove System >> select the Beams you want to rotate and swap them with a different profile
    • Or select the Beams to rotate >> unpin >> change type

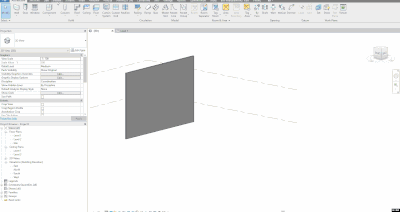

Beam System2.gif







YOUTUBE | BIM | COMPUTATIONAL DESIGN | PARAMETRIC DESIGN | GENERATIVE DESIGN | VISUAL PROGRAMMING
If you find this reply helpful kindly hit the LIKE BUTTON and if applicable please ACCEPT AS SOLUTION


Nachricht 10 von 13
barthbradley
als Antwort auf: Anonymous

I'd have to look at your file.  Post it here.

Nachricht 11 von 13
Anonymous
als Antwort auf: Anonymous

I'm going to give the curtain wall way a try since I will be able to "frame out" the windows with mullions quick and I can schedule. I appreciate your willingness.

Nachricht 12 von 13
RDAOU
als Antwort auf: Anonymous

They are same principle more or less... to rotate in Curtian walls you also have to unpin and change profile... See GIF in previous reply.





YOUTUBE | BIM | COMPUTATIONAL DESIGN | PARAMETRIC DESIGN | GENERATIVE DESIGN | VISUAL PROGRAMMING
If you find this reply helpful kindly hit the LIKE BUTTON and if applicable please ACCEPT AS SOLUTION


Nachricht 13 von 13
barthbradley
als Antwort auf: Anonymous

FWIW: here's the Type Properties of a Mullion for a 2x4 stud wall.



Stud Mullion.png
