wall mounted wc

Anonymous · ‎12-21-2015

Hello. I need to create a wall up to 1meter for a mounted WC. Which type or element should I use?

Many thanks!

chrisplyler · ‎12-21-2015

I'm not sure what you're asking. You need a wall one meter high? One meter thick? Either way, if you need a wall, it is advisable that you use a wall, unless there is some condition required that Revit walls just cannot achieve on their own.

constantin.stroescu · ‎12-23-2015

If I understood you well , your question is more a technical then a Revit one...

If you use a mounted wall wc , you' ll probably need a steel structure made by one of specialized providers. You can find these devices in one of the sites with BIM objects ( BIMobjects. NBS-National Bim Library, Autodesk Seek) In my screenshot are objects from BIMobjects - made by Geberit)

This steel structure is usuallly enveloped in a gypsum board (water proofed) on steel structure "box" - a wall with a limited height around 90 cm or 1,00 meter...

extract a family from, and insert it into your project :

and then make a wall to cover the system:

Constantin Stroescu

chrisplyler · ‎12-23-2015

constantin,

In the USA we call those "carriers." Most all wall-mounted plumbing fixtures have various carriers available for different wall conditions.

I personally don't bother putting them in my Revit models. The plumbing suppliers I use know to look at the wall types and quote the appropriate carriers along with the fixtures.

constantin.stroescu · ‎12-23-2015

Chris,

I think, I do understand now how do you proceed in USA .

Here , in Europe , we work usually , with small spaces and ,especially, when we have to change function of an existing old building without the possibility of a volume extension, every centimeter counts.

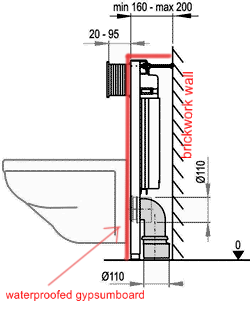

So we have to ask the plumbing engineer the overall dimensions of the "carriers" in order to know exactly the width of the wall if this is made of gypsumboard or when the wc is placed nearby a masonry wall and we want that the water tank to be hidden to make sort of low wall ( around 1,0 m high ) obtaining a sort of shelf along the main wall, as in my attached image....

I don't know if the question was really about this, but I tried to explain how we manage the interior space in case of placing cantilivered plumbing fixtures that use "carriers" .
