Surface Pattern not Displaying

8 ANTWORTEN 8
GELÖST
Antworten
Nachricht 1 von 9
BigPicture045
1688 Aufrufe, 8 Antworten

Surface Pattern not Displaying

I need these to display with a concrete surface pattern:







No View Template used in this view.




You can see that the elevation view is not cutting, but should be showing the surface of the elements:






You can see the 3D view does not show concrete on the sides:

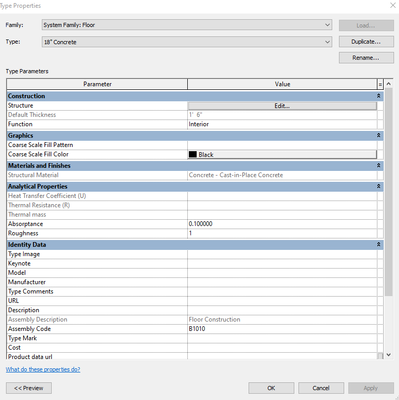

These are system floor families:






8 ANTWORTEN 8
Nachricht 2 von 9
ToanDN
als Antwort auf: BigPicture045

Paint the wall and floor edges with the concrete material.

Nachricht 3 von 9
BigPicture045
als Antwort auf: ToanDN

@ToanDN



Is this normal for floors not to display the pattern on its sides?

Nachricht 4 von 9
ToanDN
als Antwort auf: BigPicture045


@BigPicture045 wrote:

@ToanDN



Is this normal for floors not to display the pattern on its sides?


Yes.  The edges are defined not by the components' materials, but via Object styles.

Nachricht 5 von 9
hmunsell
als Antwort auf: ToanDN

not that you would necessarily want to.... but you could select the element and pick Create Parts too.

Howard Munsell
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.



EESignature


Nachricht 6 von 9
BigPicture045
als Antwort auf: hmunsell

@hmunsell What does this do and why do you suggest this?

Nachricht 7 von 9
hmunsell
als Antwort auf: BigPicture045

it breaks the element down to its individual components. so a wall or floor  that has multiple layers in its structure will separate out into there layers and can be manipulated separately.  i only use them in very specific instances. i have just seen it cause issues in a model when it is done too often.



on the left is a wall that has had Create Parts applied to it, on the Right is a normal wall.






https://help.autodesk.com/view/RVT/2022/ENU/?guid=GUID-DA150C6B-996C-4C70-9E8C-3C536C232851



Howard Munsell
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.



EESignature


Nachricht 8 von 9
barthbradley
als Antwort auf: BigPicture045

Select Floor and press Create Parts and watch the magic happen.

Nachricht 9 von 9
hmunsell
als Antwort auf: BigPicture045

you can control the visibility per view with the Parts Visibility properties option....




Howard Munsell
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.



EESignature
