STAIRS PROBLEM

[basma_salman]

hello,

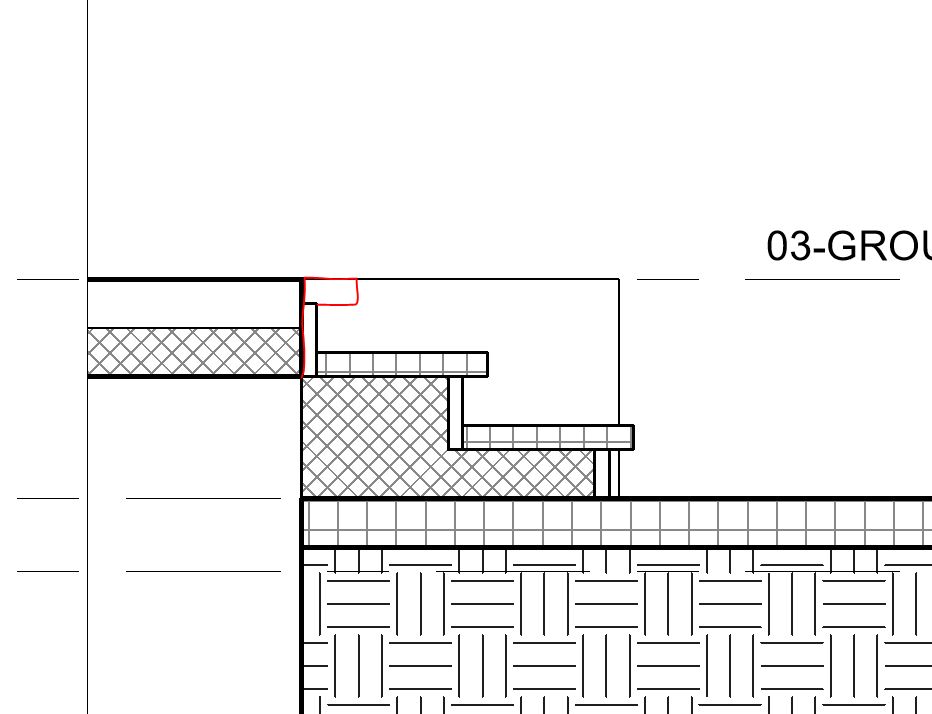

I am trying to create single step, but it is showing like in img below, it is extending beyond the tread,
I tried to change the connection method, the presentation is not correct

[barthbradley]

---

[barthbradley · Accepted solution]

@ToanDN: Did you resolve the same way? Convert to Sketch?

[basma_salman]

what abt the other 2 steps, one is 300 and the other is 350

[ToanDN]

No. But it maybe a better solution than mine.

[barthbradley]

This was actually a booger for me.  I'm embarrassed.  Convert to Sketch was the way to go.  All downhill from there.

[basma_salman]

one more thing guys, do u know how to deal with such situation

[ToanDN]

Uncheck End with Riser.

[barthbradley]

HA! That's exactly what I was fighting. The built-in component stair intelligence.  Convert to Sketch and be done with it.

[basma_salman]

but in real situation we do have a riser with nosing no a slab edge

[basma_salman]

ok I will try to convert to sketch👍

[barthbradley]

---

@basma_salman wrote:

but in real situation we do have a riser with nosing no a slab edge

---

I need an illustration to follow this one.

[basma_salman]

I guess it should look like this

[barthbradley]

I get it. End with Tread or fasten non-slip nosing to landing as a separate component or use no landing nosing.

[basma_salman]

how can I do end with tread, u mean I just model it as a component not as a stair component

[ToanDN · Accepted solution]

Like this?

[barthbradley]

---

@basma_salman wrote:

how can I do end with tread, u mean I just model it as a component not as a stair component

---

With your single step? You can't. You wouldn't to want to either.  You're fine without a nosing. What do you have there anyways? A door threshold? Well, there's your "nosing".

[MostafaElashmawy]

check below screen shot for explanation. The notch length should be considered in the total tread depth. if you want it to show as you desire. only change the tread depth to 200mm.

[barthbradley]

Can you set Connection Method to Straight Cut and resolve the "jut" seen in Section?  I couldn't.

[MostafaElashmawy]

For the two steps stair, you can follow below configuration of notch.

[ToanDN]

I think OP didn't have any problem with the 2-step stair.  1-step that is.
