Rotating Fill Pattern on Floor Slab with Modified Sub-Elements

2 ANTWORTEN 2
Antworten
Nachricht 1 von 3
jagostinho74
1115 Aufrufe, 2 Antworten

Rotating Fill Pattern on Floor Slab with Modified Sub-Elements

Hello,



I'm wanting to apply a Model Fill Pattern to a Floor Slab with Modified Sub-Elements but finding that the pattern cannot be aligned (but it can be rotated) to the different edges. The result is a very messy-looking slab.



As a workaround we are thinking of using Filled Regions using the Floor's Boundaries but it just feels too time consuming.



Any ideas on a quick way of reorienting all the Fill Patterns to a desired orientation?



Thank you in advanced.

J






Assistant BIM/CAD Manager

Manchester, UK


Beschriftungen (2)
2 ANTWORTEN 2
Nachricht 2 von 3
syman2000
als Antwort auf: jagostinho74



I would add split line. That way your pattern will be minimized to two varies instead of multiple pattern to rotate.

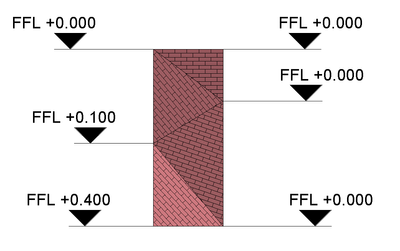

add split.png

Check out my Revit youtube channel - https://www.youtube.com/user/scourdx
Nachricht 3 von 3
bimmanagement8TDXS
als Antwort auf: syman2000

Thanks @syman2000 , but for my case I will need to keep the Modified Sub-Element edits on the floor slab so adding split lines and modifying it is not an option.
