Revit Contour Lines

4 ANTWORTEN 4
Antworten
Nachricht 1 von 5
Anonymous
413 Aufrufe, 4 Antworten

Revit Contour Lines

I am working on a complex site and trying to get my 1' or 2' contour lines to show up but they will not, even though I have every option in 'Visibility Graphics' turned on.



I attached some screenshots to show what I am looking at. The first is the site plan with only a few contours shown but not where I need them. The second is the surface edit map to show that I have drawn the contours, which I double checked and they are still accurate. The third is the AutoCAD base file that I used to reference the contour lines. My site plan is set to be 200'-0" above the surface plane so it is not cutting the contours I need off.



Thanks. InkedCapture_LI.jpgCapture_2.JPGCapture.JPG

Tags (1)
4 ANTWORTEN 4
Nachricht 2 von 5
SteveKStafford
als Antwort auf: Anonymous

Have you reviewed the Site Settings dialog and made adjustments there yet? Look on the Massing & Site ribbon > Model Site panel > small arrow pointing down at 5 O'clock.


Steve Stafford
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.
EESignature

Nachricht 3 von 5
ToanDN
als Antwort auf: Anonymous

See below:

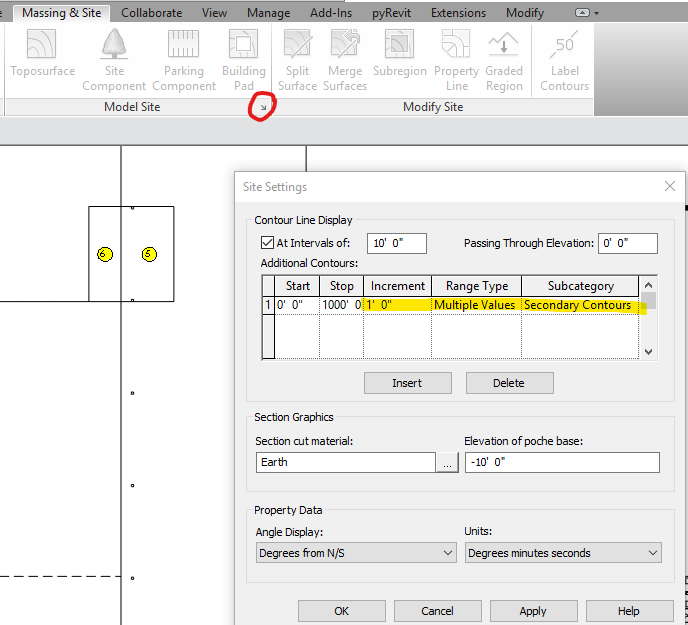

Annotation 2019-03-11 174330.png

Nachricht 4 von 5
barthbradley
als Antwort auf: Anonymous
Nachricht 5 von 5
barthbradley
als Antwort auf: Anonymous

It doesn't look like there is any relief for miles and miles from the Project site.  Is this a Toposurface from CAD Import?  Did you import it in at the correct scale?
