Rafter Visibility in Section

[jaemranm]

Hi,

When I do a section cut I am not seeing the roof rafter that I modelled.  The ones that are cut are seen but not those that are in the foreground.

[barthbradley]

Turn the Category on. Looks like Structural Trusses and/or Structural Framing. Am I right? Or change the Discipline of the View to Structural.

[barthbradley]

Next time you can't find something in the View that you know should be there, go through this list:

Missing Something in a Revit View? 33 Steps to Find Stuff | Ideate Inc

[jaemranm]

While this option reveals the rafter it also poses another challenge because all the architectural element that I want are now gone when I change the discipline to structural.

[barthbradley]

Go to Plan A then. Turn on the Categories.

[jaemranm]

Unfortunately, the categories are on but the issue is still there.

[barthbradley]

What category is the elements that are not showing?

Have you tried the Coordination Discipline?

[jaemranm]

structural Joist.

[barthbradley]

Just post your file.  Be a heck of a lot faster.

[jaemranm]

Please see the attached file as requested.

[barthbradley · Accepted solution]

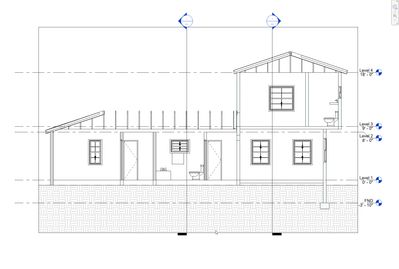

Are you talking about Section 3? Turn your Roof Category off.  The rafters are buried inside the Roof.

...or add a transparency to the roof, or create another roof type for the build-up layers above the rafters and use the one in lieu of the one you have for those Views where you want to show the rafters under the build-up.
