no visible section line in the plan view

6 ANTWORTEN 6
GELÖST
Antworten
Nachricht 1 von 7
Anonymous
3965 Aufrufe, 6 Antworten

no visible section line in the plan view

Hello, I have created a map and copied this. Then I created a drawing and created the map in 1: 500 in a window. I make a cut in the layout plan and the cut is made only the cut is not displayed in my plan in the drawing. But it is visible in the original map.



How can this be done? I checked the visibility settings.

When creating the cuts in the plan, I receive the following error message:

"None of the elements created are in plan: Site Map Visible, you should review the active view, its paramenter and visibility settings, as well as the plan areas and their settings."

The discontinued discipline is architecture, but I've already tried all the others.



Best regards,

Alexander

6 ANTWORTEN 6
Nachricht 2 von 7
ToanDN
als Antwort auf: Anonymous

VG > Annotations tab > Sections = ON
Nachricht 3 von 7
yurikim
als Antwort auf: Anonymous

Thank you for your posting @Anonymous.



This is the error message that you received, please check the solutions if any of them works:

Revit: None of the created elements are visible in the view



It sounds like copied element is attached out of the view range that you are currently in.



Cheers,

Yuri Kim
Product Support Specialist, AEC
Nachricht 4 von 7
ennujozlagam
als Antwort auf: Anonymous

hello, pick your section line symbol in your layout plan and check assign phasing and see if helps. thanks





Remember : without the difficult times in your LIFE, you wouldn't be who you are today. Be grateful for the good and the bad. ANGER doesn't solve anything. It builds nothing, but it can destroy everything...
Please mark this response as "Accept as Solution" if it answers your question. Kudos gladly accepted.
Nachricht 5 von 7
barthbradley
als Antwort auf: Anonymous

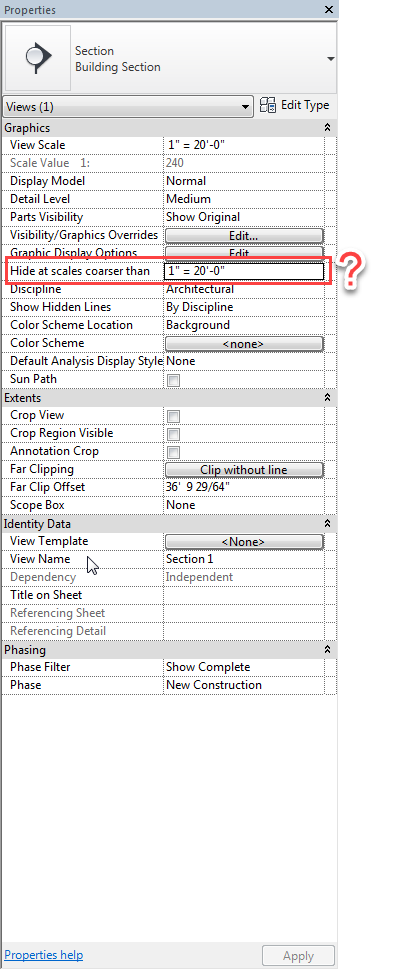

Hide at scales course than.png

Nachricht 6 von 7
Anonymous
als Antwort auf: barthbradley

I had this problem. This solved it for me. The section was hidden by scale.

Thank you!

Nachricht 7 von 7
llanto_leslie_mpc
als Antwort auf: ToanDN

thank you. great help.
