Nested Generic Model - Workplane-Based Rotation

Anonymous
Not applicable

I have a nested workplane-based generic model.  It is nested into the host model.  The host model has a reference line.  I'm able to set the nested model on the reference line's workplane.  It moves around with the reference line, but will not ROTATE with the reference line.  How do I get the nested model to rotate with the reference line?

0 Likes
Accepted solutions (1)
656 Views
6 Replies
Replies (6)
Message 2 of 7

ToanDN
Consultant
Consultant
Can you share the family?
0 Likes
Message 3 of 7

Anonymous
Not applicable

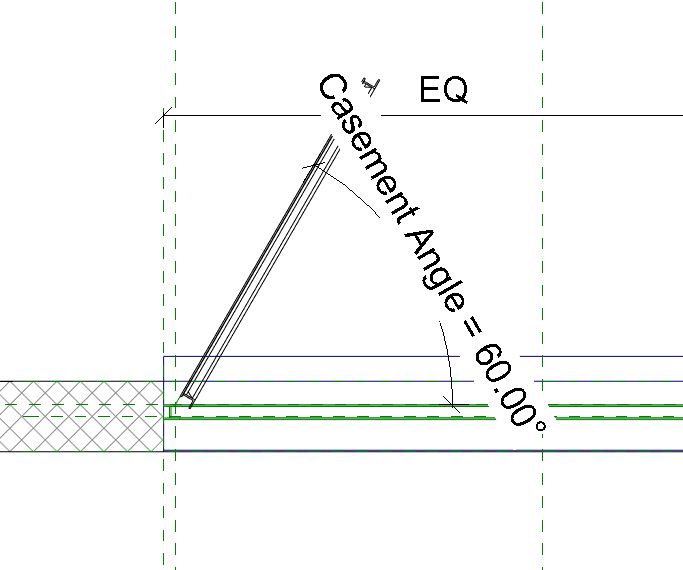

attached. rotation of a window casement nested panel

0 Likes
Message 4 of 7

barthbradley
Consultant
Consultant
Accepted solution

Uncheck Always Vertical





...you have it hosted on the wrong work plane.

0 Likes
Message 5 of 7

Anonymous
Not applicable

That worked!  Thanks!

Message 6 of 7

Anonymous
Not applicable

Now I just need to figure out how to place it correctly.

0 Likes
Message 7 of 7

ToanDN
Consultant
Consultant

I don;t know how you created that reference line but i had to create a new one to host the nested family and it works.Capture.PNGCapture1.PNG
