Model sweep to create downspout jog

6 ANTWORTEN 6
GELÖST
Antworten
Nachricht 1 von 7
cbt990
427 Aufrufe, 6 Antworten

Model sweep to create downspout jog

hello,



i am trying to jog a downspout around a corner with a sweep.

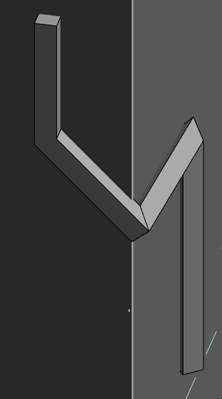

Everything looks good on the first plane, but once the profile moves to the second plane, it starts to twist the geometry of the sweep:




any way to make these play nice?






Revit is amazing
6 ANTWORTEN 6
Nachricht 2 von 7
ToanDN
als Antwort auf: cbt990

Use a round profile lol

Nachricht 3 von 7
barthbradley
als Antwort auf: cbt990


Nachricht 4 von 7
cbt990
als Antwort auf: barthbradley

Looks good. Could you please post the file?

Revit is amazing
Nachricht 5 von 7
barthbradley
als Antwort auf: cbt990

It's just smoke and mirrors. It's a Beam via 3D Snapping and Pick Lines and then using the Beam/Column Join Tool to miter the corner return.

Nachricht 6 von 7
ToanDN
als Antwort auf: cbt990

Model it as two sweeps within one in place model, one sweep on each wall plane, then join them.

Nachricht 7 von 7
cbt990
als Antwort auf: barthbradley

Can you please share more detailed steps?

Revit is amazing
