MAKE SPACE FRAME ROOF COVER

Project2.jpgHi

I want to make side cover for this space frame structure so it cant been seen from outside.



Can you help me how to create it...



Thank U.



Ben

5 ANTWORTEN 5
Nachricht 2 von 6
Corsten.Au
als Antwort auf: Anonymous

HI

As long as you can createa  a family with adaptive points... you may need 11 adaptive points above ( red )

and 10 adaptive points below ( blue ) and create a shape to enclose that..



( similar on the other sides depending on number of trusses )



adapttive points.JPG



Corsten
Building Designer
Nachricht 3 von 6
Anonymous
als Antwort auf: Corsten.Au

Thank you Ganesh...



Your answer dose help...

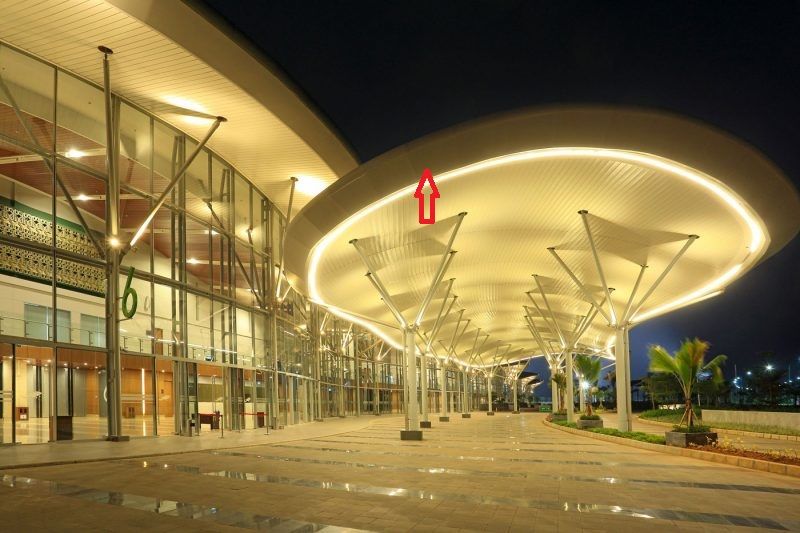

How if i want to make the cover a little bit curve  like this picture ?

IMG-1-800x533_c (1).jpg

Nachricht 4 von 6
Corsten.Au
als Antwort auf: Anonymous

Hi



I have crated a screencast for you...



You can use sweep ( a custom profile / shape  ) along any sketch.

but for adaptive family, theres a bit of planning required..



1. create a profile

2. create adaptive points ( these can be used to host on any other reference )

3. custom edge to sweep..



have a go..

pay attention to exact commands used for

1. points

2. setting plane

3. for profile etc..

just follow the steps and you will master it..



here iss a screencast.. start with adaptive family..

https://autode.sk/2zg3Lda

Screencast will be displayed here after you click Post.

65c1f5a1-e064-4791-a349-bd3479719e11



Corsten
Building Designer
Nachricht 5 von 6
Anonymous
als Antwort auf: Corsten.Au

Thanks  a lot

Nachricht 6 von 6
Anonymous
als Antwort auf: Anonymous

How can i add led strip in revit like that picture ?

Because after that i make the animation with Lumion



Thank You
