Locating Survey Point when importing land survey

dimitri.b
Enthusiast
Enthusiast

I would like to know what the best practice is when importing a land survey.



In the below image the topography/CAD file provided to me by the survey comes in on different levels. This makes sense because the topography contains contours which are a certain level above sea level or Australian Height Datum. I would like to know that when setting up the levels for the proposed project on the site, is it best practice to move the Project Base point up to the desired level of the building and then change the contours elevation base to be set to "survey point" (see below) and then draw layers at the desired height?



I also read somewhere about the relocate project button, but the problem with using that is when you try to move the levels up the topography moves up as well?


Could someone please shed some light on the best practice in dealing with this.



Many thanks in advance.

Dimitri

















0 Likes
Accepted solutions (1)
6,200 Views
30 Replies
Replies (30)
Message 21 of 31

dimitri.b
Enthusiast
Enthusiast

Either. In newer versions of revit apparently there is a reset shared coordinates button which is not available in revit 21 and prior. So if you press shared site and say this time you want to aquire coordinates you dont have that option anymore it comes up with the below:






0 Likes
Message 22 of 31

dimitri.b
Enthusiast
Enthusiast

It's hard to explain but when you are given the option to either publish coordinates or acquire coordinates you can only do it once. If you delete the link and then try to re-import the same model you do not get the option to publish coordinates but rather the below prompt:

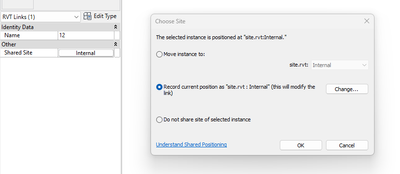

When you first link in the project you get this prompt:
