Legend or shape of wall section in Revit Schedules

2 ANTWORTEN 2
GELÖST
Antworten
Nachricht 1 von 3
ahmed.xeng
585 Aufrufe, 2 Antworten

Legend or shape of wall section in Revit Schedules

How can I add Legend or shape of wall section in Revit Schedules ?Capture.JPG

2 ANTWORTEN 2
Nachricht 2 von 3
constantin.stroescu
als Antwort auf: ahmed.xeng

you c do it by inserting Image Field in Wall Schedule:



  • create a Wall Legend

Image 1.png



  • isolate the Wall that you want to capture image

Image 2.png

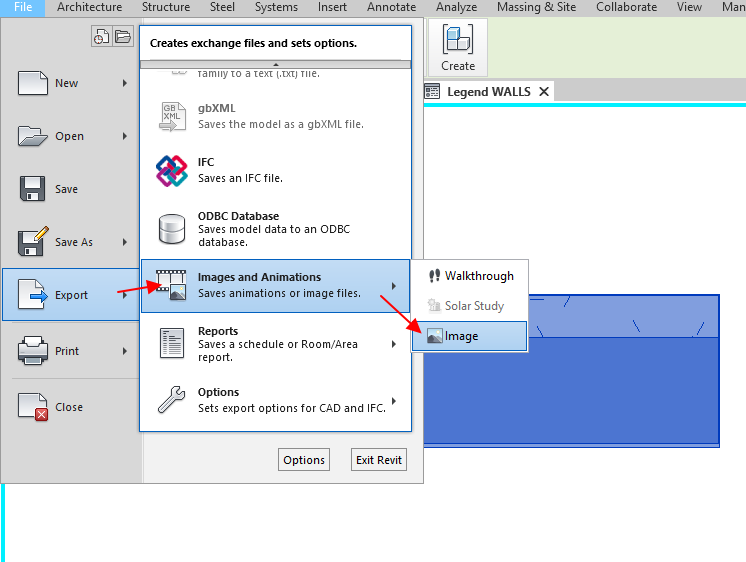

  • then Export Image and Save



Image 3.png



Image 4.png

  • in the Wall schedule with Image Field added - click on right corner as can be seen below..

Image 6.png

  • and load the previoslly saved bitmap..

Image 7.png



  • in Manage>Manage Images >Add..



Image 8.png

  • the file name appears

Image 9.png



  • once inserted the schedule on a sheet - the image appears

Image 10.png



  • and you can adjust here ( in sheet) the image cell dimensions

Image 11.png

Constantin Stroescu

EESignature

Nachricht 3 von 3
ahmed.xeng
als Antwort auf: constantin.stroescu

Thanks a lot constasntin
