How to show 3D model as dashed if hidden behind someting

[Anonymous]

I was wondering if anyone knows how to show a 3D model as dashed lines if it's hidden behind something in an orthographic view. Does it have anything to do with using symbollic lines?

[ToanDN]

I don't think you can.  You however, can turn up the transparency of the front object to 20-30% to reveal the objects behind it.

[constantin.stroescu]

1. if, from Properties >Graphics > Show Hidden Lines - turn to All - you will be able to see the elements behind the front objjects in hidden lines
2. or you can do it mabually by using Linework

2.

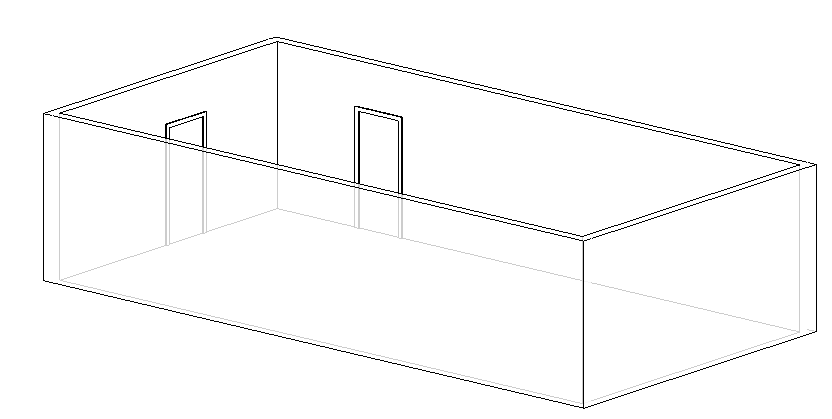

1.first method

and second method:

https://knowledge.autodesk.com/community/screencast/8c4f0d0d-3377-4cbd-b332-7430236b3566

[ToanDN]

I never knew about this option. Thank You!

[Anonymous]

That works really well. Thank you for the help! Really appreciate it.

[constantin.stroescu]

with pleasure..

I discovered it myself not very long ago..

[constantin.stroescu]

you are welcame! Glad to hear it was useful..

Constantin

[Anonymous]

It actually gets even better and easier than this for individual objects... (in lieu of linework tool)

[pboutany]

just coming to say found this 4 years on in 2020 and has massively helped me. Thanks!

[ssteinerQ5WCP]

This is helpful again in 2021! Thanks!
