How to model wood screen lattice

8 ANTWORTEN 8
GELÖST
Antworten
Nachricht 1 von 9
CT36801
685 Aufrufe, 8 Antworten

How to model wood screen lattice

I tried using a curtain system but it seems to be way too computationally expensive.


Here is what I am trying to reproduce:


What's the best way to do this? need to show realistically in model.

it needs to sit behind the actual storefront system - view from inside:




8 ANTWORTEN 8
Nachricht 2 von 9

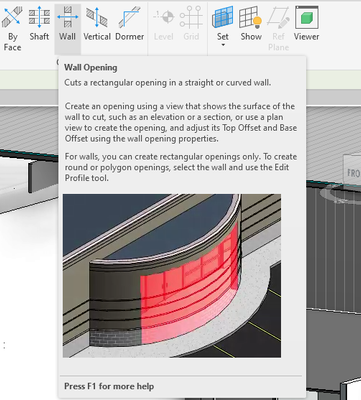

vitorbortoncello
als Antwort auf: CT36801




A resposta te ajudou? Não esqueça de curtir e aceitar como solução!


Vitor Bortoncello | Arquiteto | Especialista BIM


aAutodesk Certified Professional

Nachricht 3 von 9
barthbradley
als Antwort auf: CT36801

Are you modeling it only for rendering purposes? If so, you can get a photorealistic appearance without modeling it.

Nachricht 4 von 9
CT36801
als Antwort auf: barthbradley

Client wants to see the grid behind storefront glass in elevation. The rendering part is easy enough.

Nachricht 5 von 9
barthbradley
als Antwort auf: CT36801

BTW, Regarding your Curtain Wall: a 0'-1" Horizontal/Vertical Grid is ridiculously dense. Revit will likely throw an "excessive" error in protest.  But, even if Revit is able to create it, Revit AND the naked eye won't be able to see that kind of detail when viewing it from a suitable camera distance from the Wall.





Nachricht 6 von 9
barthbradley
als Antwort auf: CT36801


@CT36801 wrote:

Client wants to see the grid behind storefront glass in elevation. The rendering part is easy enough.




Use a Grid Surface Pattern.





....Viewing a 0'-1"x0'-1" Grid Surface Pattern behind Glass from 15'-0"






...from 30'-0":




Nachricht 7 von 9
CT36801
als Antwort auf: barthbradley

I would love to go this route but I have orders. Going to give something like this a try:

Revit Tutorial (Day 99) - Parametric Perforated Panel Family (youtube.com)

Nachricht 8 von 9
barthbradley
als Antwort auf: CT36801

Pattern-Based Curtain Panel (using Curtain Panel Pattern Based.rft) on Divided Surface.  Google it.

Nachricht 9 von 9
barthbradley
als Antwort auf: CT36801

15-inch square Pattern-Based Curtain Panels:



15-inches Square PBCP.png
