Dimension String Witness Line Will not Remove Correctly
@DWarren_CPL wrote:
Thank you for the clarification. Here is what happens when I select one of the walls.
Okay so the (2) 8' - 4 7/8" dimensions are pulled from that wall. Are you trying to snap it to something else?
@DWarren_CPL wrote:
The question, what could cause Revit to add a 0" measurement to a dimension string instead of just removing a witness line?
Again: over- or under- lapping elements. It has happened to me countless times. It is not a phenom.
OK, here is an additional clue. I manually reset the witness line to it's intended reference. Then we I selected the dimension string and activated the edit witness lines tool, you can see it highlights it's reference (as expected) but the other string (on the left) doesn't highlight a reference....
@MostafaElashmawy wrote:I have a silly idea.
May be your wall have a very small layer at that location.
A layer with approximately 0 thickness. (may be a membrane layer)
Would you please share the wall layers.
Here are the wall layers. i thought there might be a split layer in the wall, that doesn't appear to be the case.
...maybe, just maybe, you have 2 identical walls overlapping?
I have 3 overlapping in the middle here:
Or may be you have an underlayed view that have similar walls at same location.
Mostafa Elashmawy
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.
@ToanDN wrote:
@DWarren_CPL wrote:
@barthbradley wrote:I no longer understand what the issue is. What are you trying to do in your Screencast?
OK. Let's slow down so I can clarify, for everyone:
We had one team member go through and place the dimensions. Later that same team member when to remove some of the widness lines to make some adjustments. That is when it was reported to me that the add/remove witness line tool wasn't behaving as expected. When they when to "remove" a witness line Revit added a 0" measurement.
The team member pulled the dimension from the wrong element occurring the same place as the wall. He or she should have look at the tooltip when placing the dimension because it would tell him or her the exact witness element.
The only way it appears to get the witness lines to add/remove as expected, is to manually replace the witness line on it's original reference via the grip, then use the add/remove the witness lines tool. The question, what could cause Revit to add a 0" measurement to a dimension string instead of just removing a witness line?
Now, when they are trying to remove the witness, they are actually adding another witness, hence the new 0 dimension appends to the string. It will be easier for you, him, or her, to just drag the old witness to a different element, then remove it, instead of TABBING the old location to find the correct one.
Did that clarify? In my screencast, I try to remove the witness line with the add/remove tool and revit added a 0" measurement. Then I manually re-positioned the witness line with the grip. After that the line behaved as expected. I'm seeing this exact behavior on many existing dimension strings. Trying to save my project team the time of manually removing and re-dimensioning the entire floor plan.
Thank you for the response and your patience with my grammar in my last post. Sometimes communication is hard.
I understand what you're saying. You're saying the witness line is pointing to something in the same place as the intended reference (this could be a detail line, a grid line, a reference plane, etc). I have tried every way I can think of to find something either "under" or "above" the stud face. I cannot find anything. Here is a selection of one of the many walls in question... there is nothing there but the actual wall, and the dimension string. This is occurring all over the view not in this one location.
Is it possible to have an object on another phase that is being picked up (I don't know if there is anther phase on this project, but at this point I'm just thinking outside the box).
Or, is it possible that something like this might happen if the view was created from a "duplicate with detailing" workflow?
@barthbradley wrote:...maybe, just maybe, you have 2 identical walls overlapping?
I have 3 overlapping in the middle here:
That's a really good idea and I have seen my users do this... unfortunately, if i select the wall with a R to L window this is what I get... just the one wall. I can feel my hair graying as I troubleshoot this.
@MostafaElashmawy wrote:Or may be you have an underlayed view that have similar walls at same location.

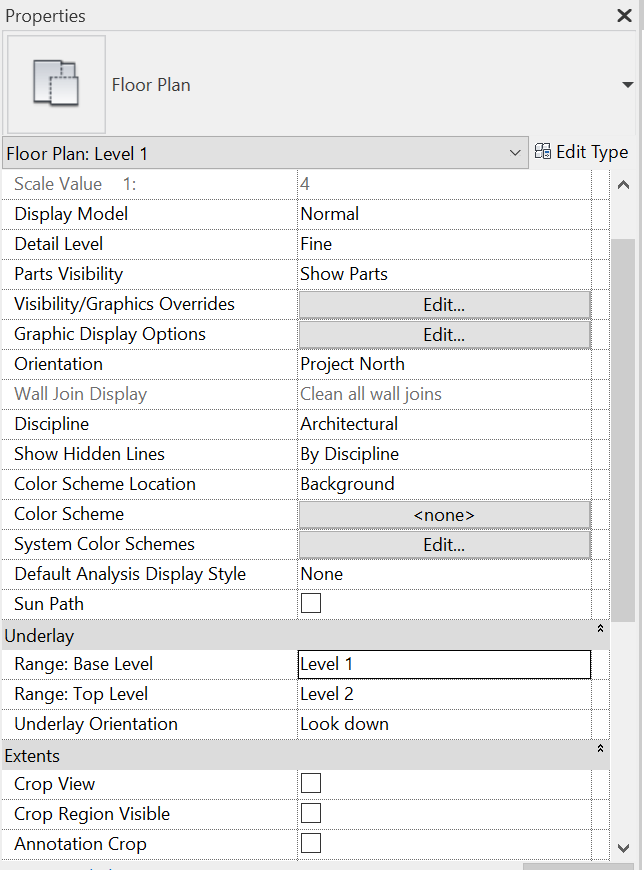

Here are the properties of the view.
If this has been asked, sorry...I didn't see it. What happens if you just click on the dimension line grip...like a button? It should jump to another reference of/within the wall (jumps from face to face to center ... repeat).
Steve Stafford
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.
With regards to assembly/parts remark. It's not parts anyway, the wall wraps nicely at those corners...
I can't for the life of me recall what this symbol was at the moment...? Anyone?
That symbol is Make Element Editable, the status of that icon indicates "you" are not the element borrower.
