Custom UV curtain Grids.

ramsuhas7
Enthusiast
Enthusiast

hello, please refer the below link.

https://knowledge.autodesk.com/support/revit-products/learn-explore/caas/CloudHelp/cloudhelp/2014/EN...

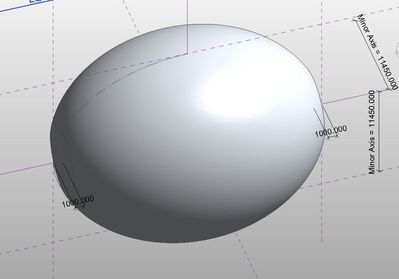

My question is how to change the grid orientation (Making the top as center not edge). mt model is more like ellipsoid.


The mass family is in the attachment.

Thank-you in advance.

0 Likes
Accepted solutions (4)
1,498 Views
14 Replies
Replies (14)
Message 2 of 15

ramsuhas7
Enthusiast
Enthusiast

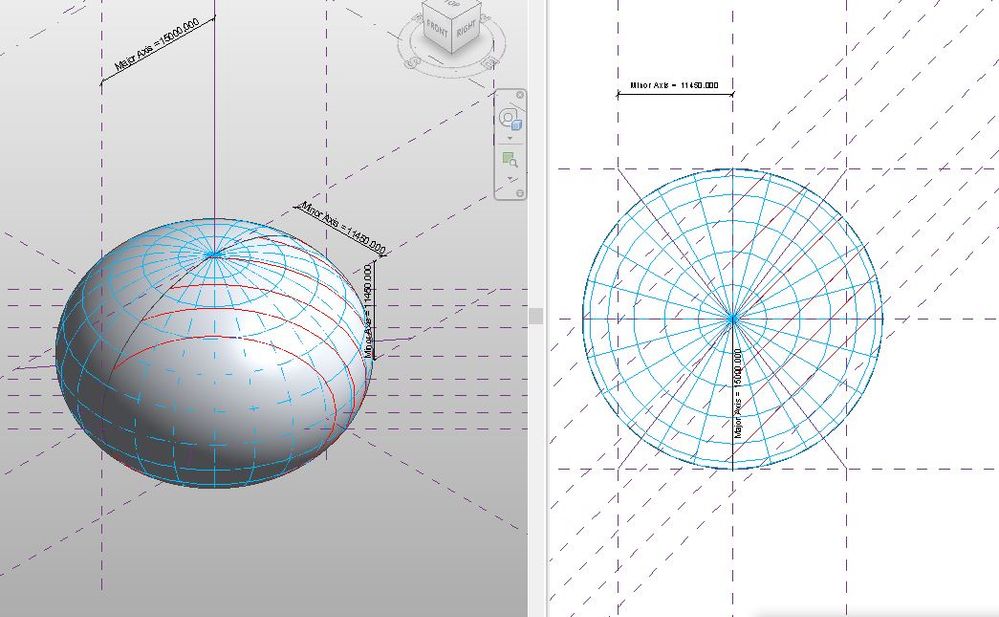

A grid like this.


0 Likes
Message 3 of 15

barthbradley
Consultant
Consultant

Draw your "egg" on a different work plane.








...or Revolve about Axis:




0 Likes
Message 4 of 15

barthbradley
Consultant
Consultant

I hadn't noticed that you posted your file. I just downloaded and examined it.  It is definitely a bigger challenge than I first thought.  I don't know that it is possible with that shape.



Wracking my brain right now.

0 Likes
Message 5 of 15

ToanDN
Consultant
Consultant
Divide the surface using intersecting reference planes.
Message 6 of 15

barthbradley
Consultant
Consultant

I gave it the old college try. I can't get there with your egg shape.




0 Likes
Message 7 of 15

Corsten.Au
Advisor
Advisor

Hi

no pattern can achieve that result.. only option is to use reference planes..

As @ToanDN mentioned.. create Reference planes on plan..

and then Use " Intersects List"



Intersecting Named ReferencesIntersecting Named References

Corsten
Building Designer
0 Likes
Message 8 of 15

barthbradley
Consultant
Consultant

Are you sure? I couldn't get Intersects to make that Divided Surface.

0 Likes
Message 9 of 15

Corsten.Au
Advisor
Advisor
Accepted solution

I think the trick was to copy the REFERENCE PLANES CENTER ( Front / Back ) or CENTER ( left/Right )

using new reference planes it doesnt work it seems

1-Copy of Center Planes.JPG1-planes.JPG1-refrence planes used.JPG2-divide surface.JPG

Corsten
Building Designer
0 Likes
Message 10 of 15

FAIR59
Advisor
Advisor
Accepted solution

I think the best possible solution is a "donut" shape.




On the ref. level draw 2 ellipses , 1 for the outline , 1 for the gap.

Create Divided Paths from those ellipses.


Make a 2 point Generic Model Adeptive family of a halved ellipse, and place on the divided paths.


Make a repeater to create the "skeleton" for your shape, and remove repeater.

Make the 4 quadrants into a surface.


Chop the ends from the resulting shape.

Select the joined geometry faces and make a Divided Surface.



Message 11 of 15

ramsuhas7
Enthusiast
Enthusiast

thank you for your trouble, that is very much helpful.

0 Likes
Message 12 of 15

ramsuhas7
Enthusiast
Enthusiast

I tried to do the same but i am not able to create quadrants and I need it to divide it into 16 parts not 4.
Is their a way to divide path in equal angle not in equal length.

thank you.

0 Likes
Message 13 of 15

Corsten.Au
Advisor
Advisor
Accepted solution
That why you need to use reference planes.. array in equal angle ..
Corsten
Building Designer
0 Likes
Message 14 of 15

FAIR59
Advisor
Advisor
Accepted solution

to make the quadrant:

select a number ( in the example 9 ) adjoining instances of the 2 point Generic Model Adeptive family of a halved ellipse, and [ Create Form ]




0 Likes
Message 15 of 15

ramsuhas7
Enthusiast
Enthusiast

Thank you got it.
