Create a curved awning

Anonymous
Not applicable

I need some help guys
Is it possible to create a curved awning as shown in attached photo on a curved wall ?

0 Likes
Accepted solutions (2)
2,580 Views
6 Replies
Replies (6)
Message 2 of 7

Anonymous
Not applicable
Accepted solution

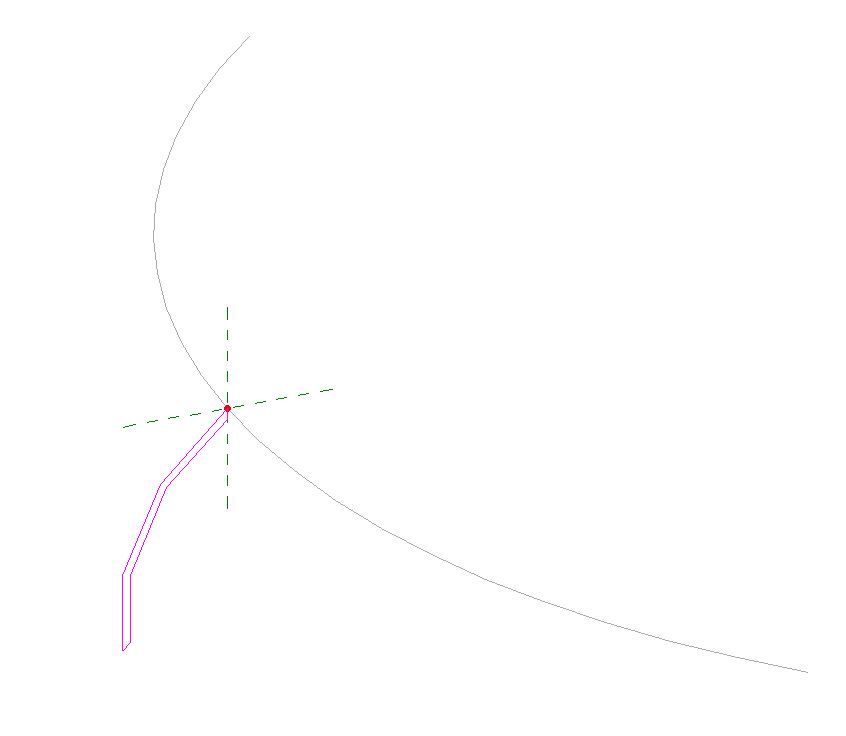

Yes absolutely! Just do it as a sweep within a generic model. The sweep path is your curved wall and the profile is the profile of the awning. Very quick attempt below but i'm sure you can do better!



PathPathProfileProfileCompleteComplete

Message 3 of 7

Anonymous
Not applicable

That was so helpful, thank you very much.






0 Likes
Message 4 of 7

barthbradley
Consultant
Consultant
Accepted solution

You could even do with Roofs and Walls.  Semi transparent red canvas over framing.  Sides are done with the Wall tool using Basic Wall Type. Top is done with the Roof by Profile tool using Basic Roof Type.  Framing is done with Roof by Profile using Sloped Glazing Type (just Mullions w/ empty panels).  Logos are done with Model Text.



Le Bistro.png



...Walls (@ sides of canopy) were shaped using the Edit Profile tool.



Message 5 of 7

Anonymous
Not applicable

I believe both ways will work perfectly, Thank you for your precious information. 10.jpg

Message 6 of 7

barthbradley
Consultant
Consultant

Nice job, @Anonymous.  Very inviting courtyard too. Smiley Wink

Message 7 of 7

Anonymous
Not applicable

Trying to do my best for my graduation project 😅

Very pleased for your complement.





0 Likes
