Change the color of lines in Legend

basheer.algohi
Enthusiast
Enthusiast

How to change the color of lines in Legend.

In the Floor plans, I managed to do it several ways, one of them is using filters, but I can't manage to get it done to color lines in Legends



Any help?


Thanks



Screenshot 2021-09-23 151357.jpg

0 Likes
Accepted solutions (2)
4,107 Views
9 Replies
Replies (9)
Message 2 of 10

jvpantin2
Collaborator
Collaborator

I'm afraid there is no way to do that, neither override by elements, do linework nor draw detail line over them. You will only change common lines (those between/inside layers) from legend's V/G overrides panel, fill core from Type properties (only will show in coarse detail level) or even create "colors" materials to show on layers, but no change lines display. Legends components are pretty schematic elements in Revit, probably it will more useful to "fake" the legend with a detail/drafting view and make all previosuly mentioned triks to show walls the way you want to...

¿Tu problema fue solucionado? Selecciona 'Marcar como solución'.
Así ayudas a otras personas a encontrar respuestas y agradeces a los miembro de la comunidad.
0 Likes
Message 3 of 10

RDAOU
Mentor
Mentor
Accepted solution

@basheer.algohi

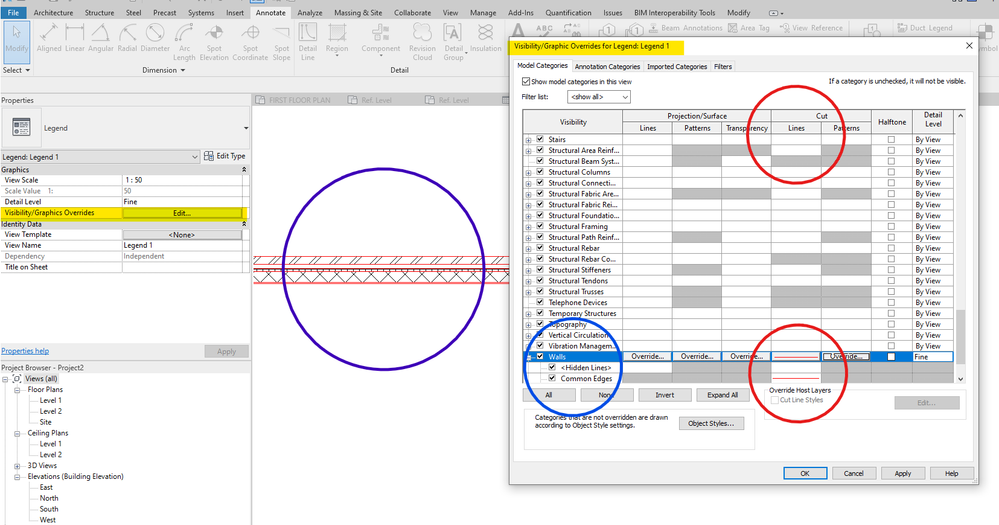

Like this... In Legend View >> Visibility/Graphics Overrides








YOUTUBE | BIM | COMPUTATIONAL DESIGN | PARAMETRIC DESIGN | GENERATIVE DESIGN | VISUAL PROGRAMMING
If you find this reply helpful kindly hit the LIKE BUTTON and if applicable please ACCEPT AS SOLUTION


Message 4 of 10

jvpantin2
Collaborator
Collaborator

@RDAOU, fine, I tested that but didn't work for me... Hope it works for you, @basheer.algohi

¿Tu problema fue solucionado? Selecciona 'Marcar como solución'.
Así ayudas a otras personas a encontrar respuestas y agradeces a los miembro de la comunidad.
0 Likes
Message 5 of 10

RDAOU
Mentor
Mentor
Accepted solution

@jvpantin2



Im pretty sure it will work for him. If the option is there, it is possible...try it again, it will work for you too. Here is GIF



Legend Color override.gif

YOUTUBE | BIM | COMPUTATIONAL DESIGN | PARAMETRIC DESIGN | GENERATIVE DESIGN | VISUAL PROGRAMMING
If you find this reply helpful kindly hit the LIKE BUTTON and if applicable please ACCEPT AS SOLUTION


0 Likes
Message 6 of 10

barthbradley
Consultant
Consultant

 A workaround would to create a Wall Legend View.  That is, put your Wall Types into a PRE-Existing Phase and demolish them before your actual construction phases begin.   You can then create a Plan View for that PRE-Existing Phase and name it “Wall Legend”.   In that View, you can apply the same overrides that you applied to the Walls in your other Model Views.



FWIW.

0 Likes
Message 7 of 10

basheer.algohi
Enthusiast
Enthusiast

@RDAOU This works but still, the pattern is not colored.

But that is good enough

Thanks



0 Likes
Message 8 of 10

barthbradley
Consultant
Consultant

Like this?



Legend Red.png



Well, if you are going to use VGOs to override every Wall on the Legend, then why not just create Materials' that have colored hatch patterns?

0 Likes
Message 9 of 10

RDAOU
Mentor
Mentor

😆

YOUTUBE | BIM | COMPUTATIONAL DESIGN | PARAMETRIC DESIGN | GENERATIVE DESIGN | VISUAL PROGRAMMING
If you find this reply helpful kindly hit the LIKE BUTTON and if applicable please ACCEPT AS SOLUTION


0 Likes
Message 10 of 10

barthbradley
Consultant
Consultant

I don't know what this  😆 symbol means, but it kind of reminds me of our family Bird who died this morning.  See the beak and the two eyes?
