TopographySurface as reference
Hi,
After further tests, it seems like the constructor for reference works, but I can't create the SpotElevation (see pic).
The Reference object is the same as if I had created the SpotElevation manually in Revit but an error occurs while trying to create the SpotElevation using code.
Maybe it is the XYZ object in the SpotElevation creation method ? I'm sure the XY is on the Topography, but i put zero to the Z value ?
TopographySurface ts = doc.GetElement(id) as TopographySurface;
XYZ p = new XYZ(x, y, 0); //x and y are calculated
Reference r = new Reference(ts);
try
{
SpotDimension e = doc.Create.NewSpotElevation(current_view, r, p, p, p, p, false);
}
catch (Exception e) { TaskDialog.Show("s",
"Reference ID: " + r.ElementId.ToString() + "\n"
+ "Reference Type: " + r.ElementReferenceType + "\n\n\n"
+ e.ToString()); }
Tks
Hi @Omar_Amen ,
I've tested a very simple method alone and outside a try-catch and it didn't work:
XYZ ps = new XYZ(0, 0, 0);
SpotDimension es = doc.Create.NewSpotElevation(current_view, new Reference(topography), ps, ps, ps, ps, false);
Tks for the link but I had already found this topic and their conclusion was to use an existing SpotElevation and copy/paste it where we need it. It works BUT not if there are subregions (because ID is different, it's another topographysurface), which is the case with all my projects! So basically I need an ElevationSpot on each possible Subregions to make it works, and that's not conceivable...
I would like to find a better way to create these ElevationSpots automatically, but it seems very difficult...
Tks again and sorry for the delay in response,
Virone Lorenzo
Sorry for the naive question, but just to make sure: can you create the desired spot elevation on the toposurface manually through the end user interface? If so, maybe you can analyse the result in RevitLookup to find out more about what elements, properties and parameters are involved and how they need to be set up. If not, the API will probably not support this either.
Developer Advocacy and Support + The Building Coder + Autodesk Developer Network + ADN Open
Hi @jeremy_tammik ,
Do you mean create it manually in Revit ? Yes I can create it manually in all ViewTypes (2D plan, 2D section, 3D,...), in my test I'm using a basic ViewPlan.

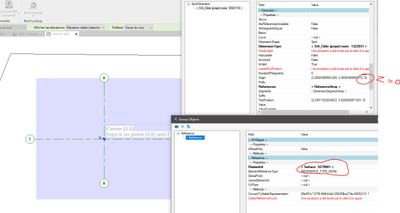

I've analyzed above in the discussion (using Revit LookUp) the parameters of the point created by hand and I tried to do the same thing using code, I've achieved to get the same objects which have the same IDs and are of the same types, but impossible to create the point... (Below a new example)
This is a point created in Revit manually :
This is the reference property I get using code :
I must specify that that, it work on objects of others types (with just a correct X-Y, no need to specify Z) but not on TopographySurface objects.
Either the API does not support, or I missed something...
Tks,
No it doesn't have to be hosted on another topo surface or pre-existing. It can be created on something that has a surface reference but not a datum element such as level. The below creates a randomised topo and places spot elevations on it. The spot elevations are copied from a single spot elevation hosted on a direct shape which is created for the purpose and deleted at the end.
Private Function Obj_210906a(ByVal commandData As Autodesk.Revit.UI.ExternalCommandData,
ByRef message As String, ByVal elements As Autodesk.Revit.DB.ElementSet) As Result
Dim UIDoc As UIDocument = commandData.Application.ActiveUIDocument
If UIDoc Is Nothing Then Return Result.Cancelled Else
Dim IntDoc As Document = UIDoc.Document
Dim V As View = UIDoc.ActiveGraphicalView
Dim SpotEl As Element = Nothing
Dim DS As DirectShape = Nothing
Dim Topo As Element = Nothing
Dim Pts As New List(Of XYZ)
Dim Nnum As Integer = 60
Dim Mnum As Integer = 40
Dim RND As New Random
Dim Range As Integer() = New Integer() {Nnum / 3, Mnum / 3}
Dim HeightLimits As Double() = New Double(1) {2 / 0.3048, 1 / 0.3048}
For X = 0 To Range(0) - 1
For Y = 0 To Range(1) - 1
Dim H As Double = HeightLimits(0) + (RND.NextDouble() * (HeightLimits(1) - HeightLimits(0)))
Dim Pt As New XYZ((X * 3) / 0.3048, (Y * 3) / 0.3048, H)
Pts.Add(Pt)
Next
Next
Using TR0 As New Transaction(IntDoc, "Create random topo")
If TR0.Start = TransactionStatus.Started Then
Topo = TopographySurface.Create(IntDoc, Pts)
V.SetCategoryHidden(New ElementId(BuiltInCategory.OST_Topography), False)
TR0.Commit()
End If
End Using
Using Tg As New TransactionGroup(IntDoc, "Add topo spot elevation")
If Tg.Start = TransactionStatus.Started Then
'Create direct shape to host spot elevation
Using TR0 As New Transaction(IntDoc, "Spot elev")
If TR0.Start = TransactionStatus.Started Then
Dim PL As Plane = Plane.CreateByNormalAndOrigin(XYZ.BasisZ, XYZ.Zero)
Dim SKP As SketchPlane = SketchPlane.Create(IntDoc, PL)
DS = DirectShape.CreateElement(IntDoc, New ElementId(BuiltInCategory.OST_GenericModel))
Dim A0 As Arc = Arc.Create(PL, 1, 0, Math.PI)
Dim A1 As Arc = Arc.Create(PL, 1, Math.PI, 2 * Math.PI)
Dim CL As New CurveLoop
CL.Append(A0)
CL.Append(A1)
Dim S As Solid = GeometryCreationUtilities.CreateExtrusionGeometry({CL}.ToList, -XYZ.BasisZ, 0.25)
DS.SetShape(New GeometryObject() {S}.ToList)
TR0.Commit()
End If
End Using
'Add spot elevation to top face of newly created direct shape.
Using TR1 As New Transaction(IntDoc, "Spot elev")
If TR1.Start = TransactionStatus.Started Then
Dim GeomEl As GeometryElement = DS.Geometry(New Options With {.DetailLevel = ViewDetailLevel.Fine, .ComputeReferences = True})
Dim S0 As Solid = GeomEl.Where(Function(x) x.GetType = GetType(Solid)).Cast(Of Solid).Where(Function(x) x.Volume > 0).FirstOrDefault
Dim TF As Face = Nothing
For i = 0 To S0.Faces.Size - 1
Dim F As PlanarFace = TryCast(S0.Faces.Item(i), PlanarFace)
If F Is Nothing Then Continue For Else
If F.FaceNormal.IsAlmostEqualTo(XYZ.BasisZ) Then
TF = F
End If
Next
Dim P As XYZ = XYZ.Zero
SpotEl = IntDoc.Create.NewSpotElevation(V, TF.Reference, P, P, P, P, False)
TR1.Commit()
End If
End Using
'Copy onto topo
Using TR2 As New Transaction(IntDoc, "Spot elev")
If TR2.Start = TransactionStatus.Started Then
For Each GP As XYZ In Pts
Dim Els As List(Of ElementId) = ElementTransformUtils.CopyElement(IntDoc, SpotEl.Id, GP)
Next
IntDoc.Delete(New ElementId() {DS.Id, SpotEl.Id}.ToList)
TR2.Commit()
End If
End Using
Tg.Assimilate()
End If
End Using
Return Result.Succeeded
End FunctionIn a new empty project you should then end up with something like the below:
