Hi All, @kummari_teja @longt61 @naveen_kumar_t

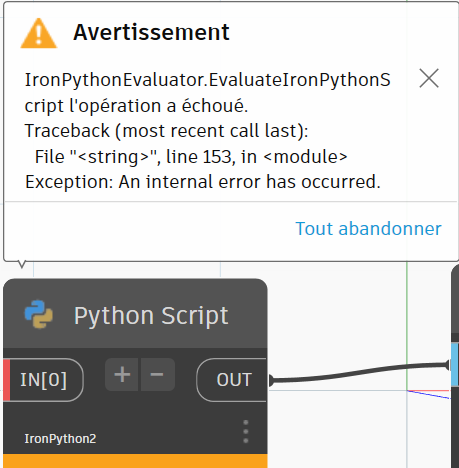

I’m using Dynamo inside Revit 2023 and I'm attempting to create stirrup rebars for the columns shown in the image below. However, I received an internal error message, and I’m not sure what caused it. Could it be related to a RebarHookOrientation issue when the column is transformed?
As I descibed in the image below, I tick “Include hooks in Rebar Shape definition”,...are my settings correct?
Please check my attached code:
import clr
import sys
import System
from System.Collections.Generic import IList, List
clr.AddReference('ProtoGeometry')
from Autodesk.DesignScript.Geometry import *
clr.AddReference('RevitAPI')
from Autodesk.Revit.DB import *
from Autodesk.Revit.DB.Structure import StructuralType, RebarBarType, RebarShape, RebarHookType,Rebar, RebarHookOrientation, RebarStyle, RebarCoverType
clr.AddReference('RevitNodes')
import Revit
clr.ImportExtensions(Revit.GeometryConversion)
clr.AddReference('RevitServices')
from RevitServices.Persistence import DocumentManager
from RevitServices.Transactions import TransactionManager
doc = DocumentManager.Instance.CurrentDBDocument
# get covers parameters by face
cover_faces = {
"Top": BuiltInParameter.CLEAR_COVER_TOP,
"Bottom": BuiltInParameter.CLEAR_COVER_BOTTOM,
"Other": BuiltInParameter.CLEAR_COVER_OTHER
}
cover_types = list(FilteredElementCollector(doc).OfClass(RebarCoverType).ToElements())
# get existing covers type
def get_cover_type(distance):
for ct in cover_types:
if abs(ct.CoverDistance - distance) < 1e-6:
return ct
name = "Enrobage_{} cm".format(distance / 0.0328084)
new_ct = RebarCoverType.Create(doc, name, distance)
cover_types.append(new_ct)
return new_ct
# set covers distance from user input
def set_column_covers(column, top, btm, side):
# Convert cm → feet
cover_cm = {"Top": top, "Bottom": btm, "Other": side}
cover_ft = {face: cover_cm[face] * 0.0328084 for face in cover_cm}
# Assign covers
for face, bip in cover_faces.items():
param = column.get_Parameter(bip)
if param and param.StorageType == StorageType.ElementId:
ct = get_cover_type(cover_ft[face])
if ct:
param.Set(ct.Id)
# get updated covers from user input
def get_column_covers(column):
result = {}
for face, bip in cover_faces.items():
param = column.get_Parameter(bip)
if param and param.StorageType == StorageType.ElementId:
ct = doc.GetElement(param.AsElementId())
if isinstance(ct, RebarCoverType):
result[face] = ct.CoverDistance
return result
# get solid geometry from column
def get_solid(column):
options = Options()
options.IncludeNonVisibleObjects = False
options.DetailLevel = ViewDetailLevel.Fine
geoElement = column.get_Geometry(options)
for g in geoElement:
if isinstance(g, GeometryInstance):
inst_geo = g.GetInstanceGeometry()
return next((g for g in inst_geo if isinstance(g, Solid) and g.Volume > 0), None)
# define stirrups curves for the column
def stirrup_curves(column, solid, covers):
curves = []
side_cover = covers.get("Other")
btm_cover = covers.get("Bottom")
base_face = next((f for f in solid.Faces if f.FaceNormal.IsAlmostEqualTo(XYZ.BasisZ.Negate())), None)
norm = base_face.FaceNormal
curveloop = base_face.GetEdgesAsCurveLoops()[0]
curveloop1 = CurveLoop.CreateViaOffset(curveloop, side_cover, norm.Negate())
trans = Transform.CreateTranslation(XYZ.BasisZ.Multiply(btm_cover))
curveloop1 = CurveLoop.CreateViaTransform(curveloop1, trans)
for c in curveloop1:
curves.append(c)
return curves
columns = list(FilteredElementCollector(doc)\
.OfCategory(BuiltInCategory.OST_StructuralColumns)\
.WhereElementIsNotElementType()\
.ToElements())
offset_curves = []
with Transaction(doc, "Set columns Covers") as t:
t.Start()
for c in columns:
set_column_covers(c, 4.5, 6, 3.5)
t.Commit()
rebar_types = (FilteredElementCollector(doc)
.OfCategory(BuiltInCategory.OST_Rebar)
.WhereElementIsElementType()
.WherePasses(ElementClassFilter(RebarBarType))
.ToElements())
rebar_shapes = (FilteredElementCollector(doc)
.OfCategory(BuiltInCategory.OST_Rebar)
.WhereElementIsElementType()
.WherePasses(ElementClassFilter(RebarShape))
.ToElements())
#shape_00 = next((s for s in rebar_shapes if s.Name == "00"), None)
bar_type = next((r for r in rebar_types if r.LookupParameter('Diamètre de barre').AsValueString() == "12 mm"), None)
bar_type1 = next((r for r in rebar_types if r.LookupParameter('Diamètre de barre').AsValueString() == "6 mm"), None)
hook_types = FilteredElementCollector(doc) \
.OfCategory(BuiltInCategory.OST_Rebar) \
.WhereElementIsElementType() \
.WherePasses(ElementClassFilter(RebarHookType)) \
.ToElements()
hook_90 = next((h for h in hook_types if Element.Name.GetValue(h) == "Standard - 90 deg"), None)
hook_135 = next((h for h in hook_types if Element.Name.GetValue(h) == "Standard - 135 deg"), None)
with Transaction(doc, "create stirrups") as t:
t.Start()
for col in columns:
solid = get_solid(col)
covers = get_column_covers(col)
top_cover, btm_cover, side_cover = covers["Top"], covers["Bottom"], covers["Other"]
curvs = stirrup_curves(col, solid, covers)
L = col.LookupParameter('Longueur').AsDouble()
s = 0.15 * 0.3048
d = L - top_cover - btm_cover
stirup_curves = List[Curve](curvs)
rebar = Rebar.CreateFromCurves(
doc,
RebarStyle.StirrupTie,
bar_type1,
hook_135,
hook_135,
col,
XYZ.BasisZ,
curvs,
RebarHookOrientation.Left,
RebarHookOrientation.Left,
True,
True
)
rebar.GetShapeDrivenAccessor().SetLayoutAsMaximumSpacing(s, d, True, True, True)
t.Commit()
OUT = 0
Please check my attached model file below:
Any help would be appreciated.
Thanks.
