ilogic - create drawing from part

[liam.dewhurstNMKYG]

Hi Team,

The open drawing from part dialogue has now started digging down 5 layers deep in folders! Which now searches our entire projects folder for the drawing you haven't yet created (and locks up inventor for 10 minutes while it searches 40Gb...)

I found this code that checks in about 1 second for the drawing in the current folder which is fantastic

ThisApplication.Documents.Open(ThisDoc.PathAndFileName(True).Replace("ipt", "idw"))

However, I want to start the "create drawing" function if it doesn't find one. Currently it throws an error, so I think I can run a catch/throw function to insert a create drawing.

Does anyone know how to start the dialogue for create drawing? I've found automations (https://clintbrown.co.uk/2018/10/07/automatic-drawings-with-ilogic/)

but we have many different templates for customers so I don't want to automatically generate the drawing & place views etc.

I just want to open this dialogue here:

[Curtis_Waguespack]

Hi @liam.dewhurstNMKYG

For the issue of the open dialog hanging up, please check this setting, in your project file... if it is not set to no, then setting to no might resolve this issue... I can't recall, but I remember having this issue in the past with that Open Drawing option.

See this link for more explination:

https://forums.autodesk.com/t5/inventor-forum/using-unique-file-names-option/m-p/6008909#M590217

I hope this helps.
Best of luck to you in all of your Inventor pursuits,
Curtis
http://inventortrenches.blogspot.com

[Curtis_Waguespack]

As for creating a new drawing if the one isn't found, I'm not sure that we can access the create new view interfaces via automation, but something like this should get you started in creating the drawing.

I hope this helps.
Best of luck to you in all of your Inventor pursuits,
Curtis
http://inventortrenches.blogspot.com

Dim oDoc As PartDocument
oDoc = ThisApplication.ActiveDocument

Try
	ThisApplication.Documents.Open _
	(ThisDoc.PathAndFileName(True).Replace("ipt", "idw"))
	Return 'exit rule
Catch
End Try

oNewDrawing = ThisDoc.ChangeExtension(".idw")


oTemplateFolder = ThisApplication.FileOptions.TemplatesPath
oTemplate = oTemplateFolder & "Standard.idw"

Dim oDrawingDoc As DrawingDocument
oDrawingDoc = ThisApplication.Documents.Add _
(DocumentTypeEnum.kDrawingDocumentObject, oTemplate, True)

oDrawingDoc.Activate()
Dim oSheet As Sheet
oSheet = oDrawingDoc.Sheets.Item(1)

Dim oPoint As Point2d
oPoint = ThisApplication.TransientGeometry.CreatePoint2d(10, 10)

Dim oView As DrawingView
oView = oSheet.DrawingViews.AddBaseView(oDoc, oPoint, 1, _
ViewOrientationTypeEnum.kFrontViewOrientation, _
DrawingViewStyleEnum.kHiddenLineRemovedDrawingViewStyle)

oDrawingDoc.SaveAs(oNewDrawing, False)

MessageBox.Show("This new file saved as: "& oNewDrawing, "iLogic")

[Curtis_Waguespack · Accepted solution]

Or maybe something like this since you mentioned you need to choose the template

	Imports System.IO
Dim oDoc As PartDocument
oDoc = ThisApplication.ActiveDocument

Try 'to open the drawing
	ThisApplication.Documents.Open _
	(ThisDoc.PathAndFileName(True).Replace("ipt", "idw"))
	Return 'exit rule
Catch
End Try

'since nothing found create it...
oNewDrawing = ThisDoc.ChangeExtension(".idw")
oTemplateFolder = ThisApplication.FileOptions.TemplatesPath
Dim oList As New ArrayList

Dim Folder As New IO.DirectoryInfo(oTemplateFolder)
For Each File As IO.FileInfo In Folder.GetFiles("*.idw", IO.SearchOption.AllDirectories)
	Dim sName As New FileInfo(File.Name)
	oList.Add(sName.Name)
Next

oTemplate = InputListBox("Select a template", oList, oList(0),"iLogic", "List")
oTemplate = oTemplateFolder & oTemplate

Dim oDrawingDoc As DrawingDocument
oDrawingDoc = ThisApplication.Documents.Add _
(DocumentTypeEnum.kDrawingDocumentObject, oTemplate, True)

oDrawingDoc.Activate()
Dim oSheet As Sheet
oSheet = oDrawingDoc.Sheets.Item(1)

Dim oPoint As Point2d
oPoint = ThisApplication.TransientGeometry.CreatePoint2d(10, 10)

Dim oView As DrawingView
oView = oSheet.DrawingViews.AddBaseView(oDoc, oPoint, 1, _
ViewOrientationTypeEnum.kFrontViewOrientation, _
DrawingViewStyleEnum.kHiddenLineRemovedDrawingViewStyle)

oDrawingDoc.SaveAs(oNewDrawing, False)

MessageBox.Show("This new file saved as: "& oNewDrawing, "iLogic")

[liam.dewhurstNMKYG]

Hey Curtis, Brilliant.

I chopped the save function off the end, but I'm running that one straight as is.

Thanks for your help!

[liam.dewhurstNMKYG]

Hey Curtis -

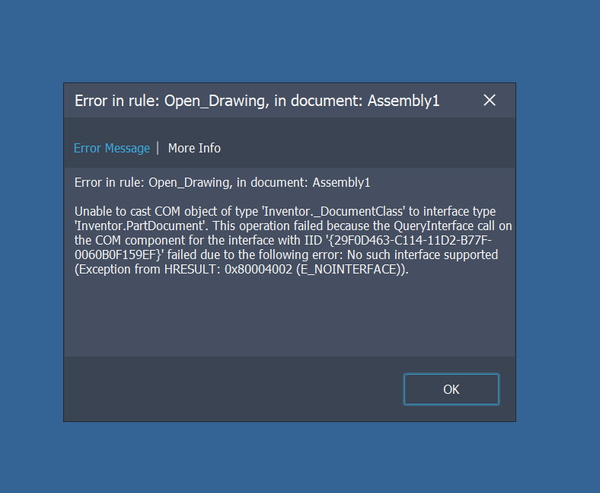

Do you know how to get this running on an assembly? Currently throwing an error

I can change the PartDocument to an AssemblyDocument and it runs however I'm just not sure how to leave it looking for a part, but  catch the error and run as an Assembly Doc instead?

This feels like a simple thing - but it doesn't quite compute yet/

Imports System.IO
Dim oDoc As PartDocument
oDoc = ThisApplication.ActiveDocument

'change this to
Imports System.IO
Dim oDoc As AssemblyDocument
oDoc = ThisApplication.ActiveDocument

'But if I try to run two variables I get stuck in the Try loop
Dim oAsm As AssemblyDocument
Dim oDpc As PartDocument
oDoc = ThisApplication.ActiveDocument
oAsm = ThisApplication.ActiveDocument

Try 'to open the drawing
	ThisApplication.Documents.Open _
	(ThisDoc.PathAndFileName(True).Replace("ipt", "idw"))
	Return 'exit rule
Catch
        ThisApplication.Documents.Open _
	(ThisAsm.PathAndFileName(True).Replace("ipt", "idw"))
	Return 'exit rule
End Try

'I'm just not sure how to catch the failure and turn it into opening an assembly doc.

But..... I managed to get this & my other macros into buttons

#myfirstbutton

It's the small things in life that are really satisfying...

[Curtis_Waguespack · Accepted solution]

Hi @liam.dewhurstNMKYG

Maybe just something like this.

I hope this helps.
Best of luck to you in all of your Inventor pursuits,
Curtis
http://inventortrenches.blogspot.com

Imports System.IO
Dim oDoc As Document
oDoc = ThisApplication.ActiveDocument
oExt = Right(oDoc.FullDocumentName,3) 'get file extension

Try 'to open the drawing
	ThisApplication.Documents.Open _
	(ThisDoc.PathAndFileName(True).Replace(oExt, "idw"))
	Return 'exit rule
Catch
End Try

'since nothing found create it...
oNewDrawing = ThisDoc.ChangeExtension(".idw")
oTemplateFolder = ThisApplication.FileOptions.TemplatesPath

Dim oList As New ArrayList

Dim Folder As New IO.DirectoryInfo(oTemplateFolder)
For Each File As IO.FileInfo In Folder.GetFiles("*.idw", IO.SearchOption.AllDirectories)
	Dim sName As New FileInfo(File.Name)
	oList.Add(sName.Name)
Next

oTemplate = InputListBox("Select a template", oList, oList(0), "iLogic", "List")
oTemplate = oTemplateFolder & oTemplate
Logger.Info(oTemplate)

Dim oDrawingDoc As DrawingDocument
oDrawingDoc = ThisApplication.Documents.Add _
(DocumentTypeEnum.kDrawingDocumentObject, oTemplate, True)

oDrawingDoc.Activate()
Dim oSheet As Sheet
oSheet = oDrawingDoc.Sheets.Item(1)

Dim oPoint As Point2d
oPoint = ThisApplication.TransientGeometry.CreatePoint2d(10, 10)

Dim oView As DrawingView
oView = oSheet.DrawingViews.AddBaseView(oDoc, oPoint, 1, _
ViewOrientationTypeEnum.kFrontViewOrientation, _
DrawingViewStyleEnum.kHiddenLineRemovedDrawingViewStyle)

[Zain_Zarar]

How do I get it to select my default drawing template rather than listing ansi, bsi etc?
