How to count specific hole features in an assembly environment

[HYOSEOK-KIM]

I am using Inventor 2024.

The logic to check the number of hole features used in a part in an assembly environment is structured as follows

-----------------------------------------------------------------------------------------------------

Sub Main()

    Dim oAsmDoc As AssemblyDocument = ThisDoc.Document

    Dim oAsmDef As AssemblyComponentDefinition = oAsmDoc.ComponentDefinition

    Dim N As Integer = 0    'holes counter

    For Each oOcc As ComponentOccurrence In oAsmDef.Occurrences.AllLeafOccurrences

If Not oOcc.Suppressed Then

            If oOcc.DefinitionDocumentType = kPartDocumentObject Then

                Dim oDef As PartComponentDefinition = oOcc.Definition

                N += GetHolesQty(oDef)

            End If

        End If

    Next

    Beep

    MsgBox ("The number of holes in the current part is:  " & N)

End Sub

'''Calculates holes in the part document

'''Be careful: nested patterns are not analyzed !

Function GetHolesQty(ByVal oDef As PartComponentDefinition) As Integer

    Dim N As Integer = 0  'counter

    Dim oHoles As HoleFeatures = oDef.Features.HoleFeatures

    For Each oH As HoleFeature In oHoles

        If Not oH.Suppressed Then

            N += oH.HoleCenterPoints.Count

        End If

    Next

    'have we any rectangular patterns ?

    Dim oRectPatterns As RectangularPatternFeatures

    oRectPatterns = oDef.Features.RectangularPatternFeatures

    For Each oRPF As RectangularPatternFeature In oRectPatterns

        Dim m As Integer = 0

        If Not oRPF.Suppressed Then

            If (TypeOf oRPF.ParentFeatures.Item(1) Is HoleFeature) Then

                Dim oH As HoleFeature = oRPF.ParentFeatures.Item(1)

                If Not oH.Suppressed Then

                    For Each oFPE As FeaturePatternElement In oRPF.PatternElements

                        If Not oFPE.Suppressed Then m += 1

                    Next

                End If

            End If

            N += m - 1

        Else

            N += m

        End If

    Next

    'have we any circular patterns ?

    Dim oCircPatterns As CircularPatternFeatures

    oCircPatterns = oDef.Features.CircularPatternFeatures

    For Each oCPF As CircularPatternFeature In oCircPatterns

        Dim m As Integer = 0

        If Not oCPF.Suppressed Then

            If (TypeOf oCPF.ParentFeatures.Item(1) Is HoleFeature) Then

                Dim oH As HoleFeature  = oCPF.ParentFeatures.Item(1)

                If Not oH.Suppressed Then

                    For Each oFPE As FeaturePatternElement In oCPF.PatternElements

                        If Not oFPE.Suppressed Then m += 1

                    Next

                End If

            End If

            N += m - 1

        Else

            N += m

        End If

    Next

    Return N

End Function

-------------------------------------------------------------------------------------------------------------

What I would like to ask is, is it possible to configure logic to identify the number of tabs used in an assembly, not all hole features, by type?

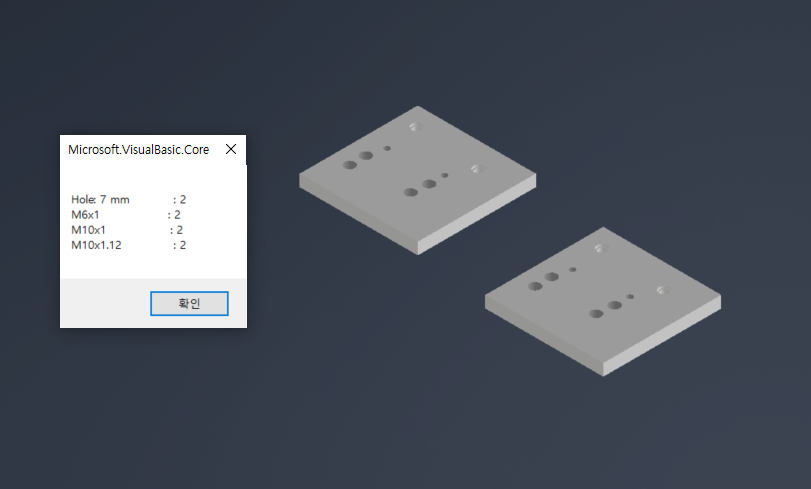

The message box is expressed as follows.
ex) 10 M3s, 2 M5s, etc.

I think it would be possible to configure the message box to display the type and number of holes by utilizing the part about HoleType.

Is it possible to configure it with logic?

[JelteDeJong]

You could try something like this:

Public Class ThisRule

    Private holes As Dictionary(Of String, Integer) = New Dictionary(Of String, Integer)()

    Sub Main()
        Dim oAsmDoc As AssemblyDocument = ThisDoc.Document
        Dim oAsmDef As AssemblyComponentDefinition = oAsmDoc.ComponentDefinition


        For Each oOcc As ComponentOccurrence In oAsmDef.Occurrences.AllLeafOccurrences
            If Not oOcc.Suppressed Then
                If oOcc.DefinitionDocumentType = DocumentTypeEnum.kPartDocumentObject Then
                    Dim oDef As PartComponentDefinition = oOcc.Definition
                    GetHolesQty(oDef)
                End If
            End If
        Next

        Beep()

        Dim msg As String = ""
        For Each item As KeyValuePair(Of String, Integer) In holes

            Dim cell = String.Format("{0,-20}", item.Key)

            msg += String.Format("{0} : {1}{2}", cell, item.Value, System.Environment.NewLine)
        Next

        MsgBox(msg)
    End Sub


    '''Calculates holes in the part document
    '''Be careful: nested patterns are not analyzed !
    Sub GetHolesQty(ByVal oDef As PartComponentDefinition)

        Dim N As Integer = 0  'counter
        Dim oHoles As HoleFeatures = oDef.Features.HoleFeatures
        For Each oH As HoleFeature In oHoles
            If Not oH.Suppressed Then
                AddHoleInfo(oH, 1)
            End If
        Next

        'have we any rectangular patterns ?
        Dim oRectPatterns As RectangularPatternFeatures = oDef.Features.RectangularPatternFeatures

        For Each oRPF As RectangularPatternFeature In oRectPatterns
            If oRPF.Suppressed Then Continue For

            Dim holes = oRPF.ParentFeatures.Cast(Of PartFeature).
                Where(Function(f) Not f.Suppressed And TypeOf f Is HoleFeature).ToList()

            If (holes.Count = 0) Then Continue For

            Dim elements = oRPF.PatternElements.Cast(Of FeaturePatternElement).
                Where(Function(fpe) Not fpe.Suppressed).ToList()

            For Each hole As PartFeature In holes
                AddHoleInfo(hole, elements.Count - 1)
            Next
        Next

        'have we any circular patterns ?
        Dim oCircPatterns As CircularPatternFeatures
        oCircPatterns = oDef.Features.CircularPatternFeatures

        For Each oCPF As CircularPatternFeature In oCircPatterns
            If oCPF.Suppressed Then Continue For

            Dim holes = oCPF.ParentFeatures.Cast(Of PartFeature).
                Where(Function(f) Not f.Suppressed And TypeOf f Is HoleFeature).ToList()

            If (holes.Count = 0) Then Continue For

            Dim elements = oCPF.PatternElements.Cast(Of FeaturePatternElement).
                Where(Function(fpe) Not fpe.Suppressed).ToList()

            For Each hole As PartFeature In holes
                AddHoleInfo(hole, elements.Count - 1)
            Next

        Next
    End Sub


    Private Sub AddHoleInfo(hole As HoleFeature, numberOfHoles As Integer)

        Dim name As String = "Unknown"

        If (hole.Tapped) Then
            If (TypeOf hole.TapInfo Is HoleTapInfo) Then
                Dim info As HoleTapInfo = hole.TapInfo
                name = info.ThreadDesignation
            Else
                Dim info As TaperedThreadInfo = hole.TapInfo
                name = info.ThreadDesignation
            End If

        Else
            name = String.Format("Hole: {0}", hole.HoleDiameter.Expression)
        End If

        If holes.ContainsKey(name) Then
            holes(name) += numberOfHoles
        Else
            holes.Add(name, numberOfHoles)
        End If

    End Sub
End Class

[HYOSEOK-KIM]

Hello.

Thank you for your reply. There's something that needs to be corrected.

The logic reads the feature name "hole" and expresses it as a count.

The count I'm looking for is different information.

For example, assuming [Assembly 1] contains one [Part 1] and two [Part 2],

[Part 1] Hole1 feature contains two M6x1s, and Hole2 feature contains three M10x1s.
[Part 2] Hole1 feature contains one M6x1.

When executing the logic, I'd like the count results to be expressed as:
M6x1 = 4
M10x1 = 3
.

Concept:
- This is an assembly document.
- The total number of holes is ~.
- Of these, the number of holes with the "tap" attribute is ~.
- Of all the tap holes, the result would be ~ for "m1" and ~ for "m2"...

Is it possible to configure it with Inventor iLogic as above?
