Number of bends of sheet metal part and direction
You can try this:
Dim doc As DrawingDocument = ThisDoc.Document
Dim sheet As Sheet = doc.ActiveSheet
Dim refDoc As PartDocument = sheet.DrawingViews.Item(1).ReferencedDocumentDescriptor.ReferencedDocument
Dim refDef As SheetMetalComponentDefinition = refDoc.ComponentDefinition
Dim flatPattern = refDef.FlatPattern
Dim ups = 0
Dim downs = 0
For Each result As FlatBendResult In flatPattern.FlatBendResults
If (result.IsOnBottomFace) Then Continue For
If (result.IsDirectionUp) Then
ups += 1
Else
downs += 1
End If
Next
Dim insertPoint = ThisApplication.TransientGeometry.CreatePoint2d(10, 10)
Dim headers = New String() {"Direction", "number"}
Dim table = sheet.CustomTables.Add("Bends", insertPoint, 2, 2, headers)
table.Rows.Item(1).Item(1).Value = "Up"
table.Rows.Item(1).Item(2).Value = ups
table.Rows.Item(2).Item(1).Value = "Down"
table.Rows.Item(2).Item(2).Value = downsJelte de Jong
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.
Blog: hjalte.nl - github.com
You also might want to have a look at my blog post: Automatically generate bend dimensions
Jelte de Jong
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.
Blog: hjalte.nl - github.com
try this:
Public Class ThisRule
Sub Main()
Dim doc As DrawingDocument = ThisDoc.Document
Dim sheet As Sheet = doc.ActiveSheet
Dim refDoc As Document = sheet.DrawingViews.Item(1).ReferencedDocumentDescriptor.ReferencedDocument
Dim infos As New List(Of DocumentInfo)
If (refDoc.DocumentType = DocumentTypeEnum.kPartDocumentObject) Then
If (refDoc.SubType = "{9C464203-9BAE-11D3-8BAD-0060B0CE6BB4}") Then
infos.Add(New DocumentInfo(refDoc))
End If
Else
For Each assDoc As Document In refDoc.AllReferencedDocuments
If (assDoc.DocumentType = DocumentTypeEnum.kPartDocumentObject) Then
If (assDoc.SubType = "{9C464203-9BAE-11D3-8BAD-0060B0CE6BB4}") Then
infos.Add(New DocumentInfo(assDoc))
End If
End If
Next
End If
If (infos.Count = 0) Then
MsgBox("No sheetmetal found.")
Return
End If
Dim insertPoint = ThisApplication.TransientGeometry.CreatePoint2d(10, 10)
Dim headers = New String() {"Part", "Size", "Up", "Down"}
Dim table = sheet.CustomTables.Add("Bends", insertPoint, headers.Length, infos.Count, headers)
For i = 1 To infos.Count
Dim row = table.Rows.Item(i)
Dim info = infos.Item(i - 1)
row.Item(1).Value = info.DisplayName
row.Item(2).Value = info.Size
row.Item(3).Value = info.Ups
row.Item(4).Value = info.Downs
Next
End Sub
End Class
Public Class DocumentInfo
Public Sub New(doc As PartDocument)
Dim uom = doc.UnitsOfMeasure
Dim def As SheetMetalComponentDefinition = doc.ComponentDefinition
Dim flatPattern = def.FlatPattern
For Each result As FlatBendResult In flatPattern.FlatBendResults
If (result.IsOnBottomFace) Then Continue For
If (result.IsDirectionUp) Then
Ups += 1
Else
Downs += 1
End If
Next
Dim width = uom.ConvertUnits(flatPattern.Width, UnitsTypeEnum.kDatabaseAngleUnits, UnitsTypeEnum.kDefaultDisplayAngleUnits)
Dim length = uom.ConvertUnits(flatPattern.Length, UnitsTypeEnum.kDatabaseAngleUnits, UnitsTypeEnum.kDefaultDisplayAngleUnits)
Size = String.Format("{0}x{1}", Math.Round(width, 5), Math.Round(length, 5))
DisplayName = doc.DisplayName
End Sub
Public Property Ups As Integer = 0
Public Property Downs As Integer = 0
Public Property Size As String
Public Property DisplayName As String
End ClassJelte de Jong
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.
Blog: hjalte.nl - github.com
Thanks A lot , it's working great , sorry for bothering you can the outputs be as custom property so I can added to existing table , below is snap for the table , thanks in advance.
This will fill the properties "ups" and "downs".
Public Sub main()
Dim doc As DrawingDocument = ThisDoc.Document
For Each refDoc As Document In doc.AllReferencedDocuments
If (refDoc.DocumentType <> DocumentTypeEnum.kPartDocumentObject) Then Continue For
If (refDoc.SubType <> "{9C464203-9BAE-11D3-8BAD-0060B0CE6BB4}") Then Continue For
Dim def As SheetMetalComponentDefinition = refDoc.ComponentDefinition
If (Not def.HasFlatPattern) Then
def.Unfold()
End If
Dim flatPattern = def.FlatPattern
Dim ups = 0
Dim downs = 0
For Each result As FlatBendResult In flatPattern.FlatBendResults
If (result.IsOnBottomFace) Then Continue For
If (result.IsDirectionUp) Then
ups += 1
Else
downs += 1
End If
Next
SetCustomProperty(refDoc, "Ups", ups)
SetCustomProperty(refDoc, "Downs", downs)
Next
End Sub
Public Sub SetCustomProperty(doc As Document, name As String, value As String)
Dim propSet = doc.PropertySets.Item("Inventor User Defined Properties")
Try
propSet.Item(name).Value = value
Catch ex As Exception
propSet.Add(value, name)
End Try
End Sub
Jelte de Jong
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.
Blog: hjalte.nl - github.com

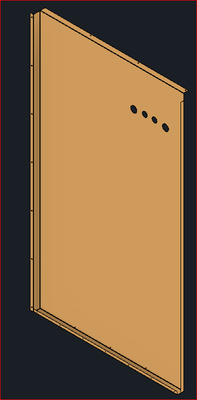

Hi @JelteDeJong thanks for your quick response , sorry for the confusion , is it possible to get how many sides has bend for example the below part has 4 edges so all edges will have 4 bends .
