Ilogic (VBA) Rounded lines in sketch

[Maciej.Miller]

Hi everyone
I'm a newbie for ilogic user and I need yours help.
I have a little problem with coding in ilogic (VBA).

How can i rounded two lines in sketch using ilogic rule?

I have a point in Excel
Nr 1 [X,Y]
Nr 2 [X,Y]
...
EOF

I read this poins and create a line
first line [Nr 1, Nr 2]
second line [Nr 2, Nr 3]
...
etc

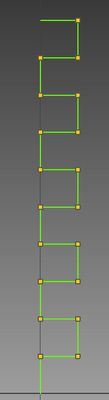

I want doing somting like that:

My code:

SyntaxEditor Code Snippet

Sub main()
'Sprawdzenie czy szkic jest otwarty.
If Not TypeOf ThisApplication.ActiveEditObject Is PlanarSketch Then
	MessageBox.Show("A sketch must be active.", "iLogic")
	Return
End If

'set a reference to the active sketch.
Dim Szkic As PlanarSketch
Szkic = ThisApplication.ActiveEditObject

'set a reference to the transient geometry collection.
Dim Geometria As TransientGeometry
Geometria = ThisApplication.TransientGeometry

'========================================================

'nazwa_pliku_xlsx = InputBox("Podaj nazwę pliku:", "Nazwa pliku (bez rozszerzenia xlsx)", "Default Entry")
nazwa_pliku_xlsx = "pkt" & ".xlsx"
Adres = ThisDoc.Path & "\" & nazwa_pliku_xlsx

Dim Licznik, i As Integer
i = 1

'Funkcja GoExcel.FindRow znajduje nr wiersza dla EOF (W excelu w Arkuszu 1 musi byc formatowanie jako tabela)
'Licznik pomniejsza j.w. o -1
Licznik = (GoExcel.FindRow(nazwa_pliku_xlsx, "Arkusz1", "LP", "<>", "EOF")) - 1
MessageBox.Show("Licznik=  " & Licznik)
Dim Odcinek(0 To Licznik) As SketchLine
Dim X(0 To 1000), Y(0 To 1000) As Double

Do While i< Licznik-1
	X(i) = (GoExcel.CellValue(nazwa_pliku_xlsx, "Arkusz1", "B" & CStr(i + 2)))/10
	Y(i) = (GoExcel.CellValue(nazwa_pliku_xlsx, "Arkusz1", "C" & CStr(i + 2))) / 10

	If i=1
		Odcinek(i) = Szkic.SketchLines.AddByTwoPoints(Geometria.CreatePoint2d(0, 0), Geometria.CreatePoint2d(X(i), Y(i)))
	Else
		Odcinek(i) = Szkic.SketchLines.AddByTwoPoints(Odcinek(i-1).EndSketchPoint, Geometria.CreatePoint2d(X(i), Y(i)))
	End If
	i = i + 1

	Loop

GoExcel.Close
iLogicVb.UpdateWhenDone = True

End Sub


BR
M. Miller

[Xun.Zhang]

Hello M. Miller,

It sounds like can be well-handled by constant Fillet API. @YuhanZhang, any good practice to offer here?

Thanks!

[YuhanZhang · Accepted solution]

Add below code lines to your iLogic code:

Odcinek(i) = Szkic.SketchLines.AddByTwoPoints(Odcinek(i-1).EndSketchPoint, Geometria.CreatePoint2d(X(i), Y(i)))

' Fillet the two sketch lines
Dim dRadius As Double:dRadius = 5
Szkic.SketchArcs.AddByFillet(Odcinek(i-1),Odcinek(i),dRadius,Odcinek(i-1).StartSketchPoint.Geometry,Odcinek(i).EndSketchPoint.Geometry)

[YuhanZhang]

Can my code solve the problem? If yes please accept it as solution, thanks.

[Maciej.Miller · Accepted solution]

Hi

Thank You for the solution.
It was very helpful.
