iLogic: Getting a parameter is incorrect error when I try to add a TitleBlockDefinition to a newly added sheet.
Hi @shizahkhalid. At Line 18 your code may be working with a different Sheet object than the one you created on Line 7, which could be why it is throwing an error. Just use that same 'newSheet' variable there, instead of trying to obtain the correct sheet again on Lines 16 & 17. You can probably just delete Lines 16 & 17, then use the 'newSheet' variable on Line 18, instead of the 'activeSheet' variable. Also, for performance reasons, it would be better to obtain a reference to the TitleBlockDefinition you want to use before you start that loop, because you do not need to 'get' it every time, just once.
Edit: You may also need to add a line of code like the following:
newSheet.Activate...at around Line 8 (after you add it), just to make ensure it is active before attempting to add the new TitleBlock instance to it.
Wesley Crihfield
(Not an Autodesk Employee)
Thank you for the prompt response! I have made the changes you suggested, and am still getting the same error 😣.
Dim templateTitleBlock As TitleBlockDefinition = oDrgDoc.TitleBlockDefinitions.Item("CPT A3 REV")
Dim oDoc As Document
For Each oDoc in oActiveDoc.AllReferencedDocuments
If oDoc.DocumentType = kAssemblyDocumentObject Then
' Add a new sheet
Dim newSheet As Sheet
newSheet = oDrgDoc.Sheets.Add()
Dim sPromptStrings(0 To 1) As String
sPromptStrings(0) = "String 1"
sPromptStrings(1) = "String 2"
newSheet.AddTitleBlock(templateTitleBlock, , sPromptStrings)
newSheet.Name = oDoc.DisplayName
' Create the drawing for the assembly document on the new sheet
CreateDrawing(oDoc, newSheet)
iLogicVb.RunExternalRule("CreatePartsList")
End If
Next
OK. Is it possible that the new sheet already has a TitleBlock on it? I know the Sheet.AddTitleBlock method says that it will simply replace any existing TitleBlock, but it seems like it has not always worked that way for everyone, maybe due to the presence of prompted entries in it. Also, are you 100% sure that new TitleBlockDefinition has exactly 2 prompted entries in it? I'm pretty sure the size of the array of strings needs to be the same size as the number of prompted entries in the TitleBlockDefinition, even though it does not mention that detail. Try inserting the three lines of code after adding the new sheet, but before trying to add the new TitleBlock.
If newSheet.TitleBlock IsNot Nothing Then
newSheet.TitleBlock.Delete
End IfWesley Crihfield
(Not an Autodesk Employee)
I added that code snippet and still no luck. Is there some other way i can add new sheets so that they already contain the formatting of the original sheet in the drawing?

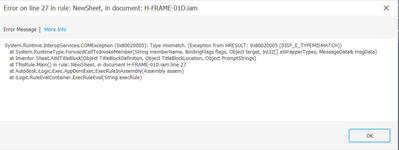

I tested out the code as a separate rule and got a Type Mismatch error for the same line of code (line 27). And yes, I am certain the title block contains two prompted entries.
Sub main()
' Set reference to active document. This assumes the active document is an assembly
Dim oActiveDoc As Document
oActiveDoc = ThisApplication.ActiveDocument
strLocation = ThisApplication.FileOptions.TemplatesPath
oDrgDoc = ThisApplication.Documents.Add(kDrawingDocumentObject, strLocation & "CPT-DRAWING-TEMPLATE.idw")
Dim oDoc As Document
For Each oDoc In oActiveDoc.AllReferencedDocuments
If oDoc.DocumentType = kAssemblyDocumentObject Then
' Add a new sheet
Dim newSheet As Sheet
newSheet = oDrgDoc.Sheets.Add()
newSheet.Activate
If newSheet.TitleBlock IsNot Nothing Then
newSheet.TitleBlock.Delete
End If
Dim sPromptStrings(0 To 1) As String
sPromptStrings(0) = "String 1"
sPromptStrings(1) = "String 2"
newSheet.AddTitleBlock(templateTitleBlock, , sPromptStrings)
newSheet.Name = oDoc.DisplayName
End If
Next
End Sub
In your new complete rule, you have not declared the 'templateTitleBlock' variable, nor set a value to it, so it would not be able to work yet. Yes, there are one or two other ways to add a new sheet where the new sheet would already contain the Border, TitleBlock, notes, and even views in it, but not guaranteed to keep any dimensions. The most common manual way would be to copy the previous sheet to the clipboard, then unselect that previous sheet, then paste that sheet from the clipboard back into your drawing. This can be done by code too, but maybe just not as simple as it sounds. The built-in way is by using a SheetFormat. You could make sure you have a SheetFormat the way you want it, then use the Sheets.AddUsingSheetFormat method to create a new sheet based on that SheetFormat. If the new sheet already has a TitleBlock instance on it, and it contains some prompted entries, then it provides a way to fill those in when you create the new sheet that way. If the new sheet contained any views in it, then you would need to provide either the FullDocumentName or a model Document object as input when creating the new sheet, then that will be what the views are referencing in the new sheet.
