Centre Mark Style Fix

[gerrardhickson]

Problem: The Centre Mark Style - Value "D" (Extension) is linked to the overshoot of a curved centerline bisector as well as the stroke length for (what seems like every second) lines.

This prohibits the use of the tool for creating centrelines for curved elements such as pipeways.

Solution: Please correct this by linking the overshoot distance of a curved centreline to the "A" (Overshoot) value as per straight lines. It seems that for a straight centre line, the value "A" determines overshoot. For a circle (centre mark) the value, "C" determines overshoot. For a curved centre line, the value "D" determines overshoot.

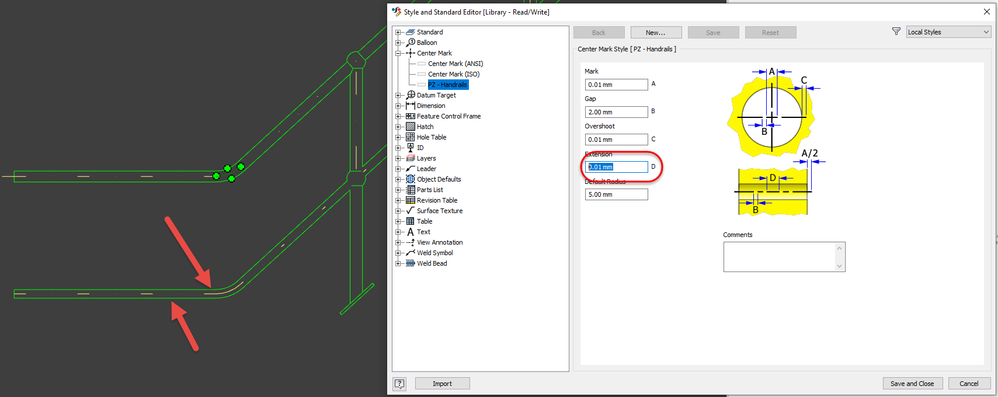

See attached images - note that only value "D" has been changed.

[gerrardhickson]

Correction: It seems that for a straight centre line, the value "A" determines overshoot. For a circle (centre mark) the value, "C" determines overshoot. For a curved centre line, the value "D" determines overshoot.
