Hi,



I have part 1 (P1) in assembly 1 (A1), and A1 is a subassembly to A2.

I have been in the past able to set part 1 in assembly 1 as normal, but reference in assembly 2. Currently this option is greyed out.

There are 2 ways to set apart reference:

1. from iProperties (or BOM), which changes the part to reference in all other assemblies it's represented in.

2. from the assembly browser, which only sets that part as reference in the particular assembly.



I am trying to use method 2 as I don't  want to change the part itself. However, in A2 I only have the option to set the subassembly A1 as reference and not part P1. You can see this in below snippets. (items are all checked out and editable)

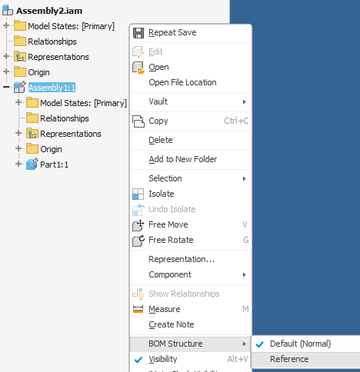

Matthorv_0-1710503073352.png  Matthorv_1-1710503095871.png



I have read up on this thread,  and while it considers the suppression state issues, I thought it might be connected to my issue.

Could you please advise if there is any working solutions?



Thanks,

Matt
